Pneuforce® PIJ5/32 PNEPIJ5/32
  1. pin-int

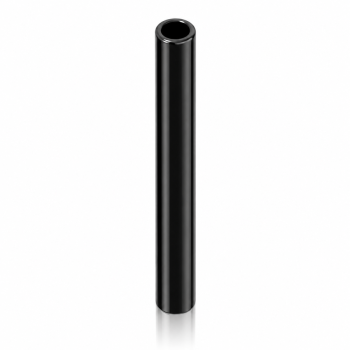

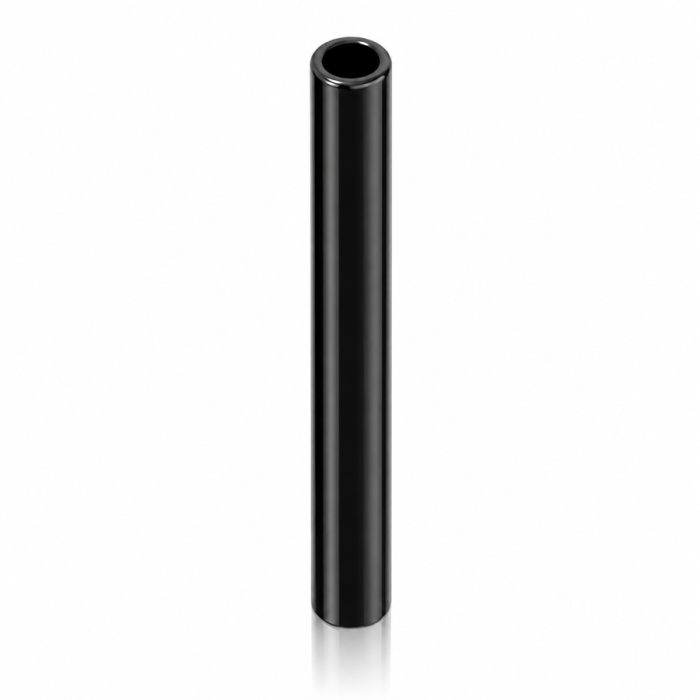

Pneuforce® PIJ5/32 PNEPIJ5/32

Pneuforce® PIJ5/32 Fitting Nipple, 5/32 in Nominal, Push-to-Connect End Style, 0 to 150 psi Pressure, Polybutylene Terephthalate

  • Manufacturer: Vacuforce LLC.
  • Brand Name: Pneuforce®
  • Part Number: PNEPIJ5/32
  • MPN: PIJ5/32
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

Pneuforce®, PIJ5/32, Nipple, Fitting, 5/32 in Nominal, Push-to-Connect End Style, 35 mm Length, 0 to 150 psi Pressure, 32 to 140 deg F, Polybutylene Terephthalate

End Style      :      Push-to-Connect
Length      :      35 mm
Material      :      Polybutylene Terephthalate
Nominal Size      :      5/32 in
Pressure Rating      :      0 to 150 psi
Temperature Rating      :      32 to 140 deg F
Type      :      Fitting
  • Threaded Body - Nickel Plated Brass
  • Release Collar - POM (Polyoxymethylene)
  • Gripping Claw - Stainless Steel
  • O Ring Seals - NBR (Nitrile Rubber)
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Vacuforce_JSC10_G04_Specification_Sheet.pdf
