Pneuforce® PC5/16-N3 PNEPC5/16-N3

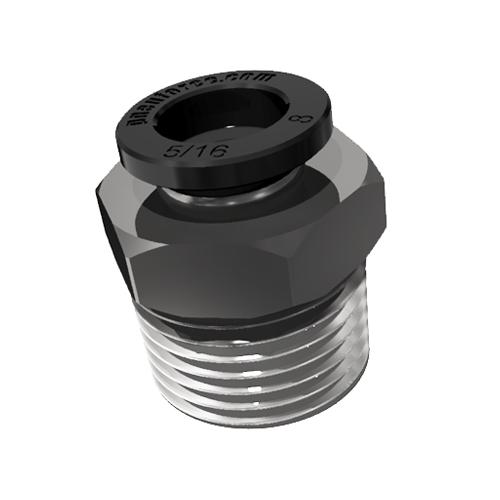

Pneuforce® PC5/16-N3 Fitting Male Straight Stud, 5/16 in x 3/8 Nominal, Tube x MNPT End Style, 14.7 to 150 psi Pressure, Plastic

  • Manufacturer: Vacuforce LLC.
  • Brand Name: Pneuforce®
  • Part Number: PNEPC5/16-N3
  • MPN: PC5/16-N3
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Pneuforce®, PC5/16-N3, Male Straight Stud, Fitting, 5/16 in x 3/8 Nominal, Tube x MNPT End Style, 11/16 in Hex, 22.4 mm Length, 14.7 to 150 psi Pressure, 32 to 140 deg F, Plastic

End Style      :      Tube x MNPT
Hex Size      :      11/16 in
Length      :      22.4 mm
Material      :      Plastic
Nominal Size      :      5/16 in x 3/8
Pressure Rating      :      14.7 to 150 psi
Temperature Rating      :      32 to 140 deg F
Type      :      Fitting
  • Threaded Body - Nickel Plated Brass
  • Release Collar - POM (Polyoxymethylene)
  • Gripping Claw - Stainless Steel
  • O Ring Seals - NBR (Nitrile Rubber)
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Vacuforce_JSC10_G04_Specification_Sheet.pdf
