Pneuforce® PC1/2-N4 PNEPC1/2-N4

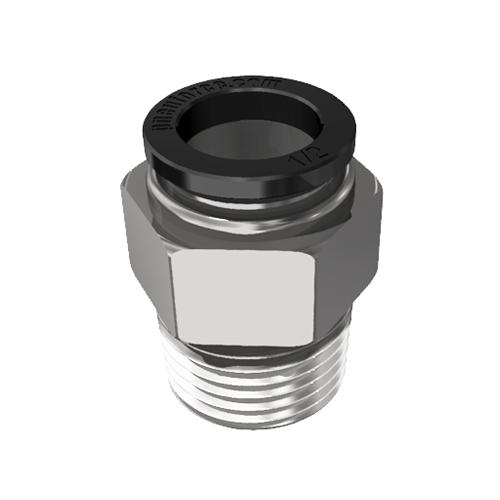

Pneuforce® PC1/2-N4 Fitting Male Straight Stud, 1/2 in Nominal, Tube x MNPT End Style, 14.7 to 150 psi Pressure, Plastic

  • Manufacturer: Vacuforce LLC.
  • Brand Name: Pneuforce®
  • Part Number: PNEPC1/2-N4
  • MPN: PC1/2-N4
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Pneuforce®, PC1/2-N4, Male Straight Stud, Fitting, 1/2 in Nominal, Tube x MNPT End Style, 7/8 in Hex, 33.4 mm Length, 14.7 to 150 psi Pressure, 32 to 140 deg F, Plastic

End Style      :      Tube x MNPT
Hex Size      :      7/8 in
Length      :      33.4 mm
Material      :      Plastic
Nominal Size      :      1/2 in
Pressure Rating      :      14.7 to 150 psi
Temperature Rating      :      32 to 140 deg F
Type      :      Fitting
  • Threaded Body - Nickel Plated Brass
  • Release Collar - POM (Polyoxymethylene)
  • Gripping Claw - Stainless Steel
  • O Ring Seals - NBR (Nitrile Rubber)
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Vacuforce_JSC10_G04_Specification_Sheet.pdf
