NTN UKP313D1-H2313X NTNUKP313D1

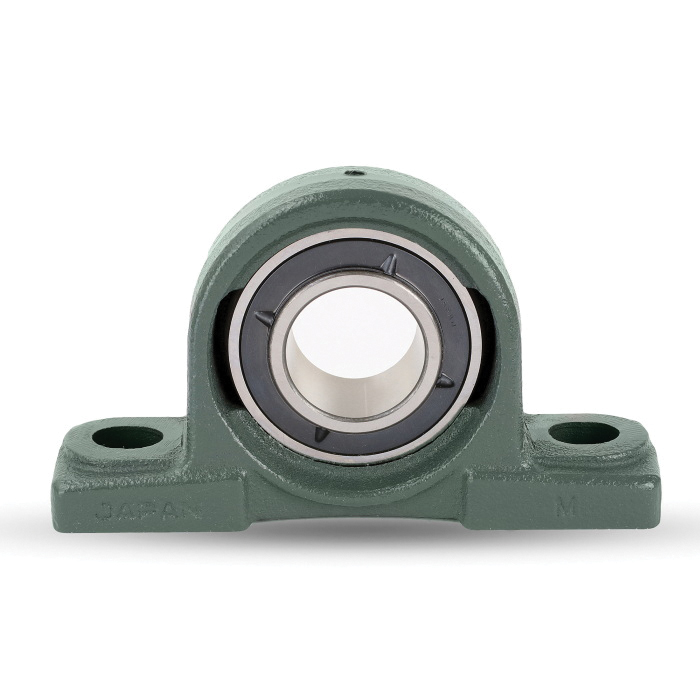

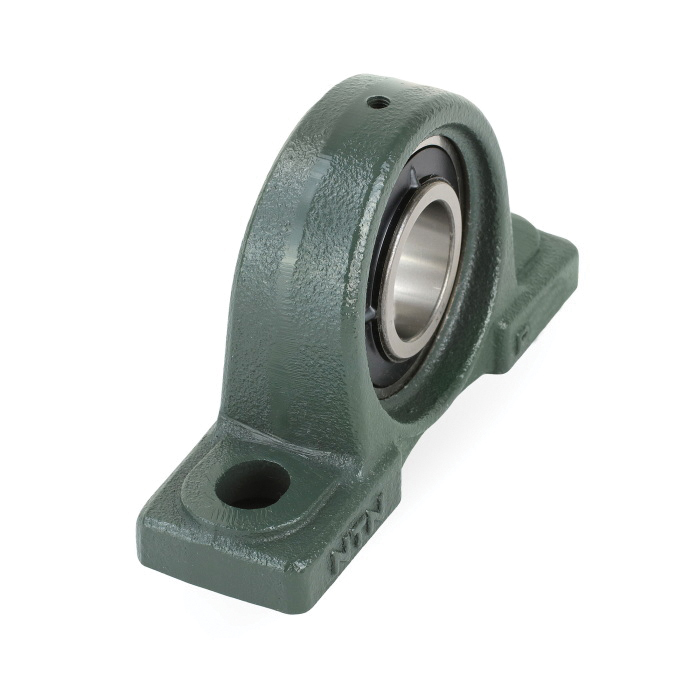

NTN UKP313D1-H2313X 1-Piece Heavy Duty Open End Pillow Block Ball Bearing Unit, 60 mm Dia Bore, 260 mm L Bolt Center-to-Center, 90 mm Base to Bore Centerline, 340 mm OAL x 176 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUKP313D1
- MPN: UKP313D1-H2313X
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
-
Price:
NTN Pillow Block Ball Bearing Unit, 1-Piece Heavy Duty Open End, Series: UKP, 60 mm Bore Dia, 260 mm Bolt Center-to-Center Length, 90 mm Base to Bore Centerline, 340 mm Overall Length, 90 mm Overall Width, 176 mm Overall Height, Tapered Bore Type, 90 mm Base Width, Adapter Locking Device, Contact Seal, 92.5 kN Dynamic/60 kN Static, -40 to 120 deg C, Cast Iron

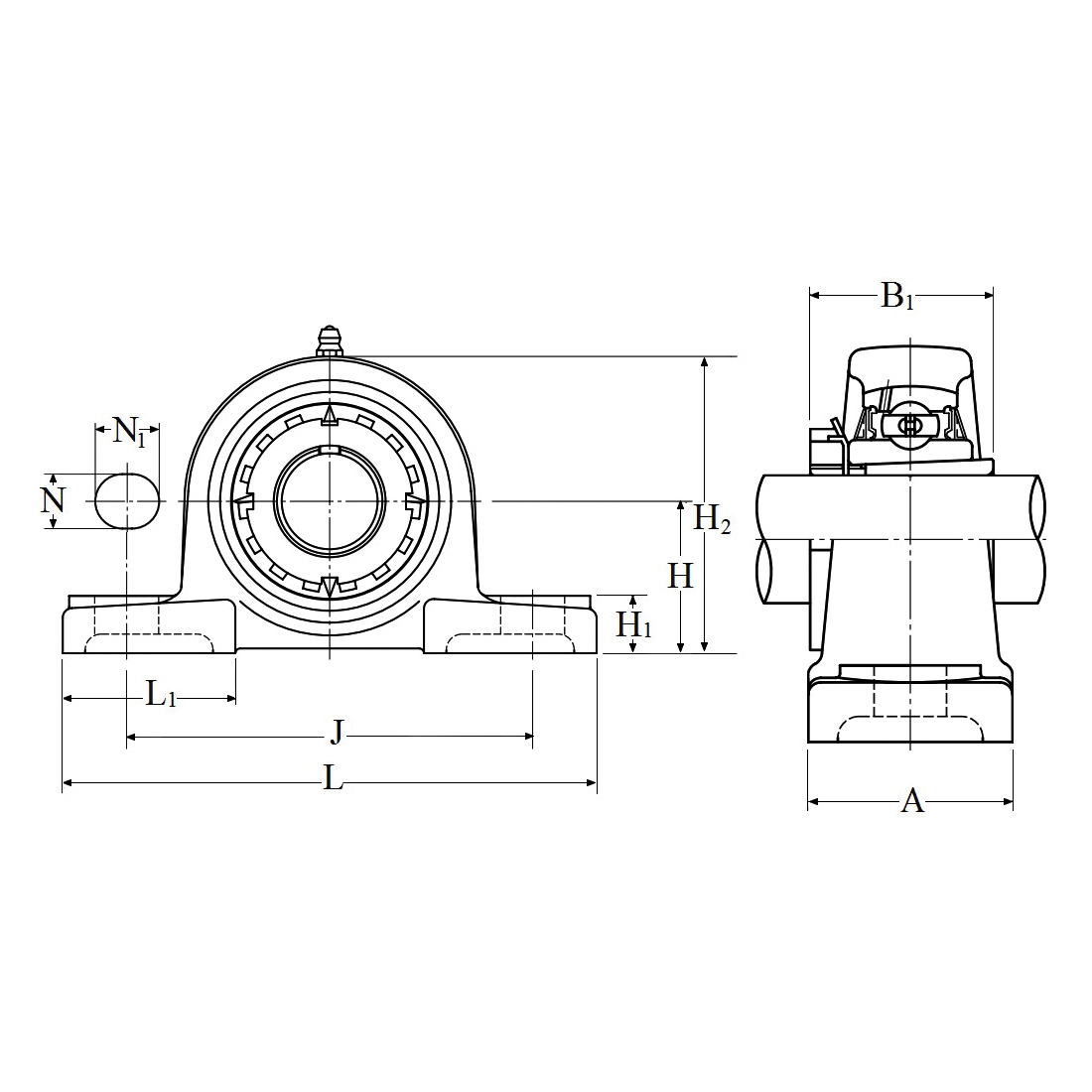

| Base Width | : | 90 mm |
| Base to Bore Centerline | : | 90 mm |
| Bolt Center-to-Center Length | : | 260 mm |
| Bore Diameter | : | 60 mm |
| Bore Type | : | Tapered |
| Load Capacity | : | 92.5 kN Dynamic/60 kN Static |
| Locking Device | : | Adapter |
| Material | : | Cast Iron |
| Overall Height | : | 176 mm |
| Overall Length | : | 340 mm |
| Overall Width | : | 90 mm |
| Seal Type | : | Contact |
| Series | : | UKP |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Heavy Duty Open End |
