NTN UELP208-109 NTNUELP208-109

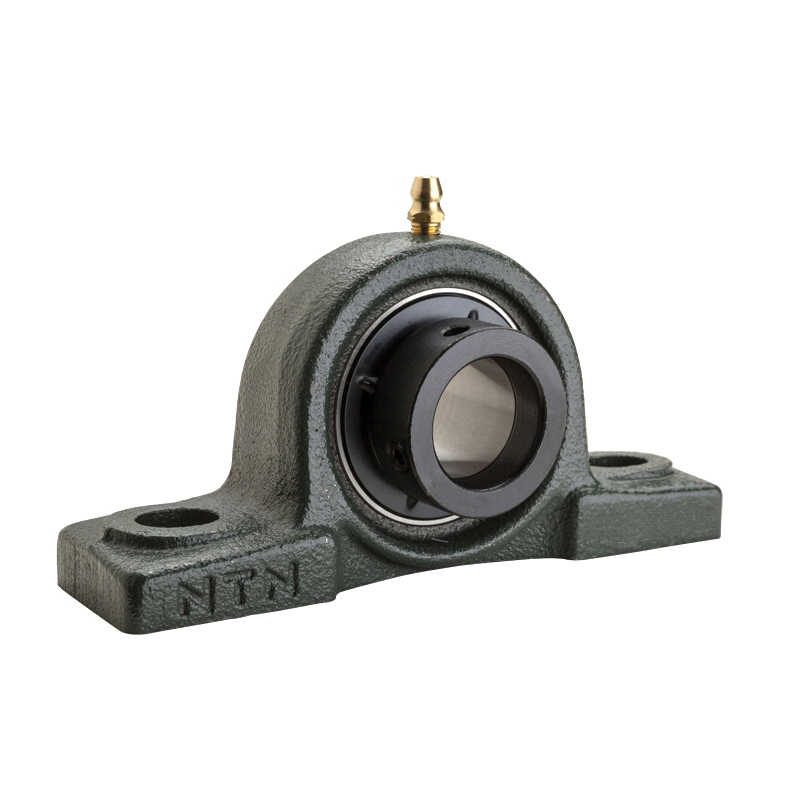

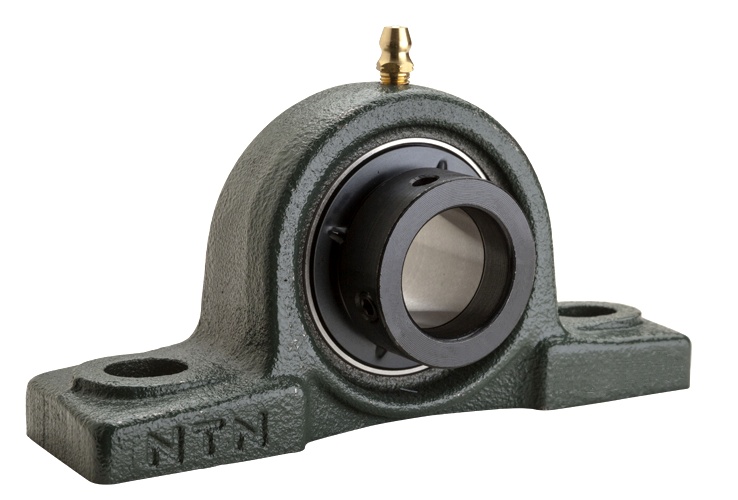

NTN UELP208-109 1-Piece Light Duty Pillow Block Ball Bearing Unit, 39.688 mm Dia Bore, 137 mm L Bolt Center-to-Center, 49.2 mm Base to Bore Centerline, 184 mm OAL x 98 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUELP208-109
- MPN: UELP208-109
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty, Series: UELP2, 39.688 mm Bore, 137 mm Bolt Center-to-Center Length, 49.2 mm Base to Bore Centerline, 184 mm Overall Length, 61.9 mm Overall Width, 98 mm Overall Height, 54 mm Base Width, Eccentric Locking Collar Locking Device, Contact Seal, 29100 N Dynamic/17800 N Static Load, -40 to 120 deg C, 3700 rpm Maximum, Cast Iron

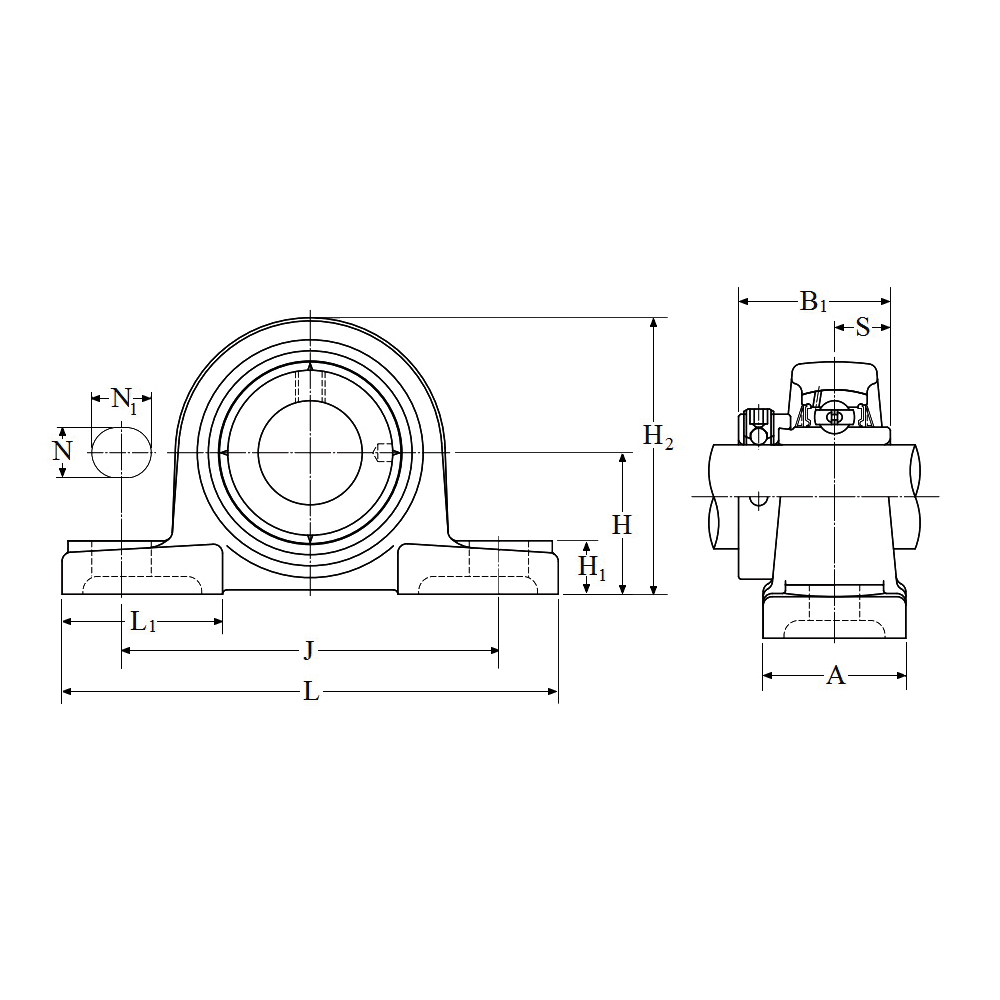

| Base Width | : | 54 mm |
| Base to Bore Centerline | : | 49.2 mm |
| Bolt Center-to-Center Length | : | 137 mm |
| Bore Diameter | : | 39.688 mm |
| Load Capacity | : | 29100 N Dynamic/17800 N Static |
| Locking Device | : | Eccentric Locking Collar |
| Material | : | Cast Iron |
| Maximum Speed | : | 3700 rpm |
| Overall Height | : | 98 mm |
| Overall Length | : | 184 mm |
| Overall Width | : | 61.9 mm |
| Seal Type | : | Contact |
| Series | : | UELP2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Non-relubricatable
- Nitrile rubber seal
- Open end
