NTN UELFC209-112D1 NTNUELFC209-112D1

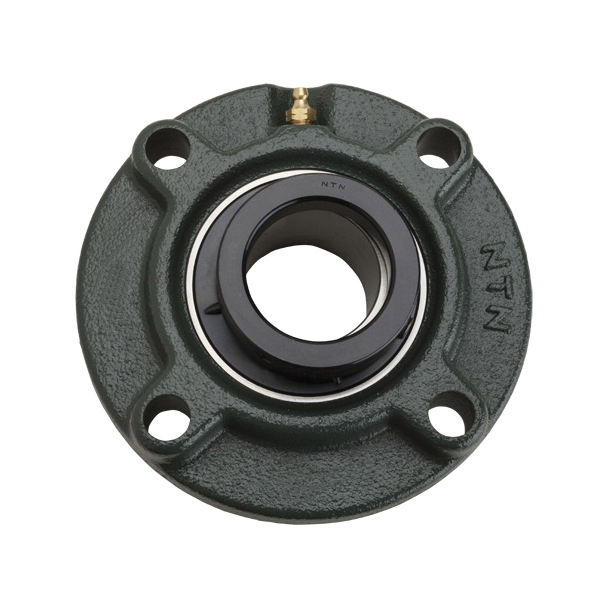

NTN UELFC209-112D1 1-Piece Light Duty Ball Bearing Unit, 44.45 mm Dia Bore, 93.3 mm L Bolt Center-to-Center, 132 mm Dia Bolt Circle, 4-Bolt Round Flange Mount, 160 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUELFC209-112D1
- MPN: UELFC209-112D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UELFC2, 44.45 mm Bore, 93.3 mm Bolt Center-to-Center Length, 132 mm Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 160 mm Overall Length/Diameter, 56.3 mm Overall Depth, 160 mm Overall Height, Eccentric Locking Collar Locking Device, Nitrile Rubber Seal, 32500 N Dynamic/20400 N Static Load, 3500 rpm Maximum, -40 to 120 deg C
| Bolt Center-to-Center Length | : | 93.3 mm |
| Bolt Circle Diameter | : | 132 mm |
| Bore Diameter | : | 44.45 mm |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 32500 N Dynamic/20400 N Static |
| Locking Device | : | Eccentric Locking Collar |
| Maximum Speed | : | 3500 rpm |
| Overall Depth | : | 56.3 mm |
| Overall Height | : | 160 mm |
| Overall Length/Diameter | : | 160 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | UELFC2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Relubricatable
- Contact seal
- Cast iron housing
