NTN UELF208D1 NTNUELF208D1

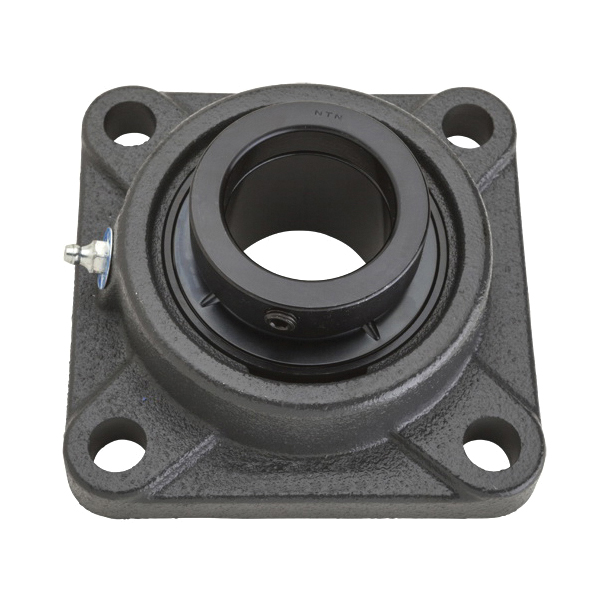

NTN UELF208D1 1-Piece Light Duty Ball Bearing Unit, 40 mm Dia Bore, 102 mm L Bolt Center-to-Center, 4-Bolt Square Flange Mount, 130 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUELF208D1
- MPN: UELF208D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UELF2, 40 mm Bore, 102 mm Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 130 mm Overall Length/Diameter, 56.3 mm Overall Depth, 130 mm Overall Height, Eccentric Locking Collar Locking Device, Nitrile Rubber Seal, 29100 N Dynamic/17800 N Static Load, 3700 rpm Maximum, -40 to 120 deg C
| Bolt Center-to-Center Length | : | 102 mm |
| Bore Diameter | : | 40 mm |
| Flange Mounting Type | : | 4-Bolt Square |
| Load Capacity | : | 29100 N Dynamic/17800 N Static |
| Locking Device | : | Eccentric Locking Collar |
| Maximum Speed | : | 3700 rpm |
| Overall Depth | : | 56.3 mm |
| Overall Height | : | 130 mm |
| Overall Length/Diameter | : | 130 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | UELF2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Relubricatable
- Contact seal
- Cast iron housing
