NTN UCS205-100D1UNR NTNUCS205-100D1UNR

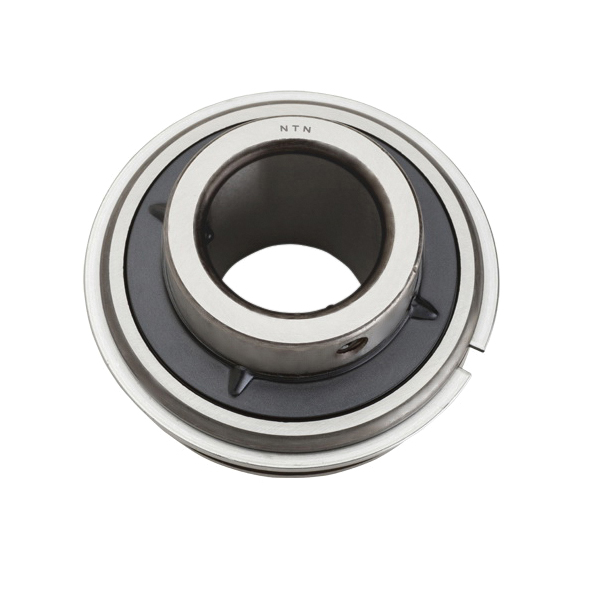

NTN UCS205-100D1UNR Round Bore Light Duty Ball Insert Bearing, 25.4 mm Dia Bore, 52 mm OD, 34 mm W, 14000 N Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUCS205-100D1UNR
- MPN: UCS205-100D1UNR
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Insert Bearing, Round Bore Light Duty, Series: UCS2, 25.4 mm Bore, 52 mm OD, 34 mm Width, Double Seal Closure, 14000 N Load, Hardened Steel Bearing, Nitrile Rubber Seal, -40 to 120 deg C
| Bearing Material | : | Hardened Steel |
| Bore Diameter | : | 25.4 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 14000 N |
| Outside Diameter | : | 52 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | UCS2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Round Bore Light Duty |
| Width | : | 34 mm |
- Contact seal
- Relubricatable
- Steel ball
- Cylindrical OD snap ring
- CN radial clearance
- 14000 N dynamic/7850 N static
