NTN UCP212-206D1 NTNUCP212-206D1

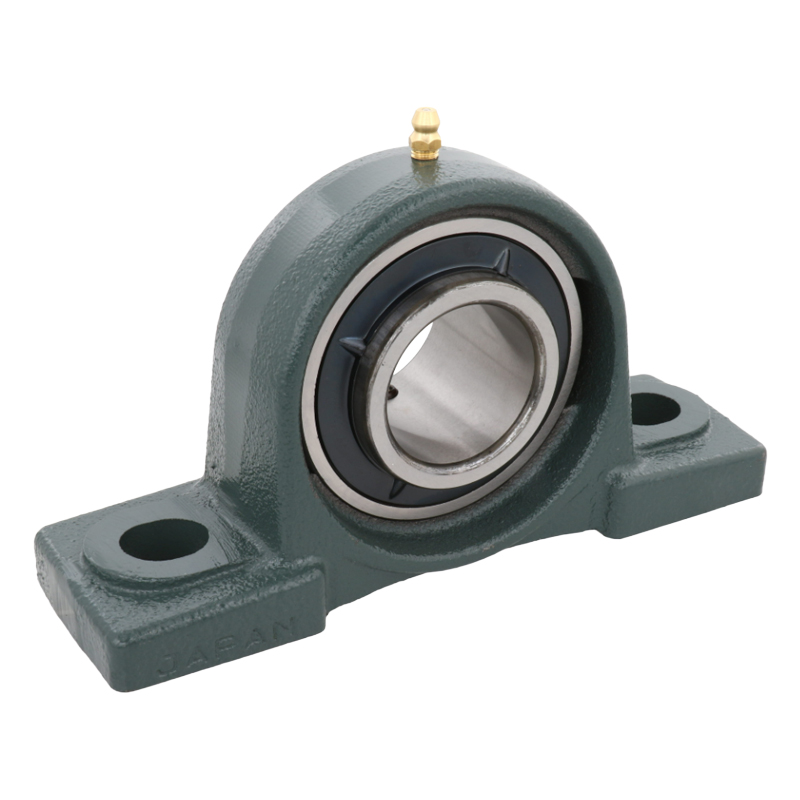

NTN UCP212-206D1 1-Piece Light Duty Pillow Block Ball Bearing Unit, 60.325 mm Dia Bore, 184 mm L Bolt Center-to-Center, 69.8 mm Base to Bore Centerline, 241 mm OAL x 138 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUCP212-206D1
- MPN: UCP212-206D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty, Series: UCP2, 60.325 mm Bore, 184 mm Bolt Center-to-Center Length, 69.8 mm Base to Bore Centerline, 241 mm Overall Length, 74.7 mm Overall Width, 138 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 70 mm Base Width, Set Screw Locking Device, Contact Seal, 52500 N Dynamic/36000 N Static Load, -40 to 120 deg C, 2500 rpm Maximum, Cast Iron
| Base Width | : | 70 mm |
| Base to Bore Centerline | : | 69.8 mm |
| Bolt Center-to-Center Length | : | 184 mm |
| Bore Diameter | : | 60.325 mm |
| Bore Type | : | Round |
| Load Capacity | : | 52500 N Dynamic/36000 N Static |
| Locking Device | : | Set Screw |
| Material | : | Cast Iron |
| Maximum Speed | : | 2500 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 138 mm |
| Overall Length | : | 241 mm |
| Overall Width | : | 74.7 mm |
| Seal Type | : | Contact |
| Series | : | UCP2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Relubricatable
- Nitrile rubber seal
- Open end
