NTN UCFH206-103D1 NTNUCFH206-103D1

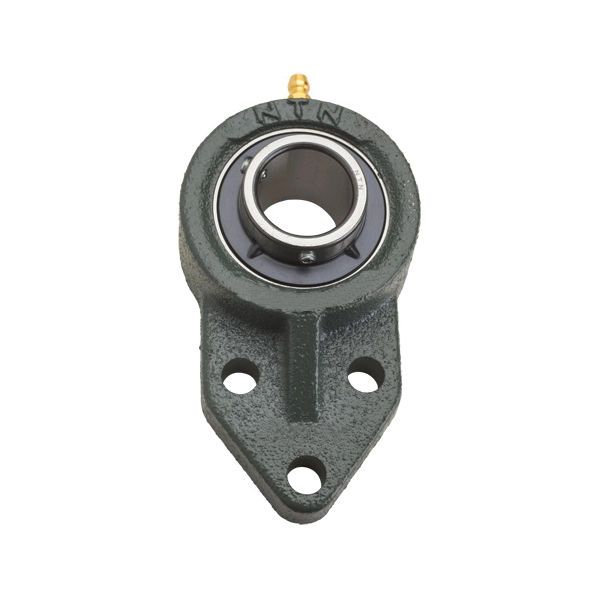

NTN UCFH206-103D1 1-Piece Light Duty Ball Bearing Unit, 30.163 mm Dia Bore, 40 mm L Bolt Center-to-Center, 3-Bolt Flange Mount, 78 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUCFH206-103D1
- MPN: UCFH206-103D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: UCFH2, 30.163 mm Bore, 40 mm Bolt Center-to-Center Length, 3-Bolt Flange Mounting, 78 mm Overall Length/Diameter, 40.2 mm Overall Depth, 130 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 19500 N Dynamic/11300 N Static Load, 4900 rpm Maximum, -40 to 120 deg C

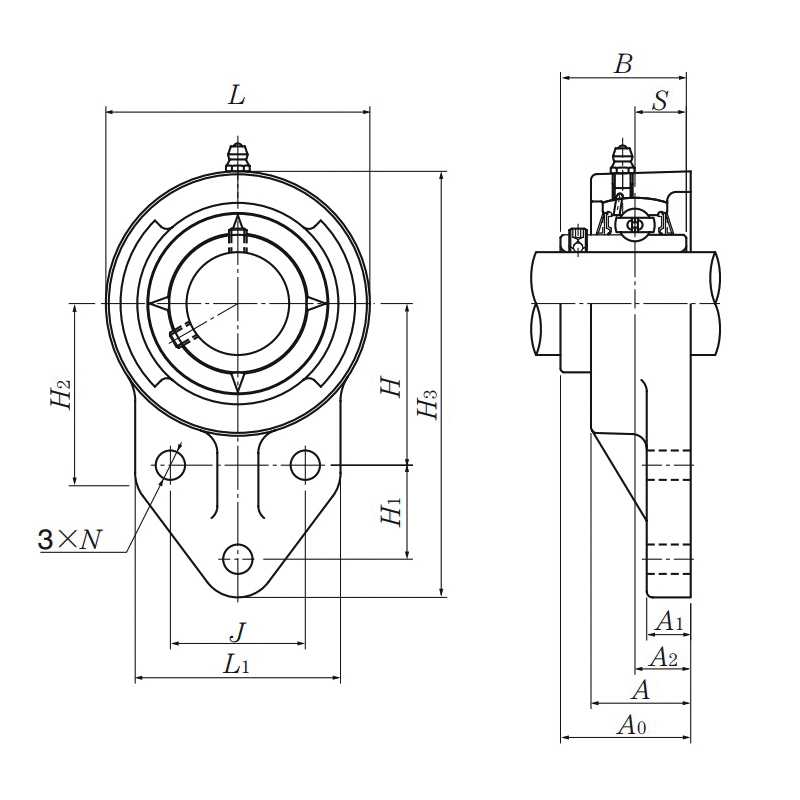

| Bolt Center-to-Center Length | : | 40 mm |
| Bore Diameter | : | 30.163 mm |
| Flange Mounting Type | : | 3-Bolt |
| Load Capacity | : | 19500 N Dynamic/11300 N Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 4900 rpm |
| Overall Depth | : | 40.2 mm |
| Overall Height | : | 130 mm |
| Overall Length/Diameter | : | 78 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | UCFH2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Relubricatable
- Contact seal
- Cast iron housing
