NTN UCC206D1 NTNUCC206D1

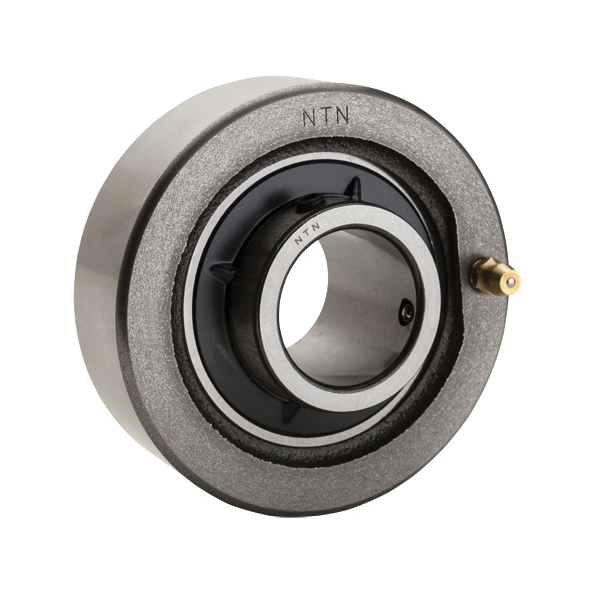

NTN UCC206D1 Light Duty Cylindrical Ball Bearing Cartridge Unit, 30 mm Dia Bore, 85 mm OD, 38.1 mm W, Hardened Steel Bearing
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUCC206D1
- MPN: UCC206D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Cylindrical Ball Bearing Cartridge Unit, Light Duty, Series: UCC2, 30 mm Bore Dia, 85 mm Outside Dia, 38.1 mm Width, 19500 N Dynamic/11300 N Static, Hardened Steel Bearing, 4900 rpm Maximum, -40 to 120 deg C
| Bearing Material | : | Hardened Steel |
| Bore Diameter | : | 30 mm |
| Load Capacity | : | 19500 N Dynamic/11300 N Static N |
| Maximum Speed | : | 4900 rpm |
| Outside Diameter | : | 85 mm |
| Series | : | UCC2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Light Duty |
| Width | : | 38.1 mm |
- Setscrew locking device
- Relubricatable
- Contact seal
- Cast iron housing
