NTN UC210HT2D1 NTNUC210HT2D1

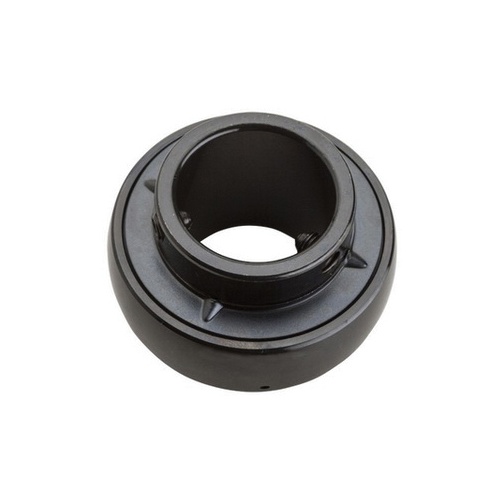

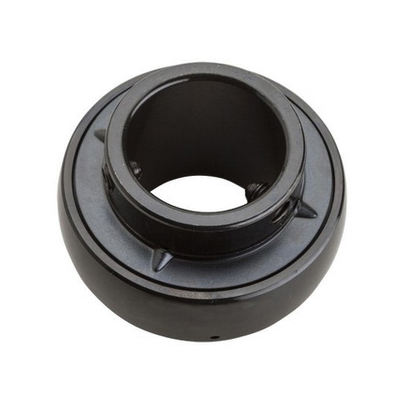

NTN UC210HT2D1 Round Bore Light Duty Ball Insert Bearing, 50 mm Dia Bore, 90 mm OD, 51.6 mm W, 35000 N Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNUC210HT2D1
- MPN: UC210HT2D1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN UC210HT2D1 Round Bore Light Duty Ball Insert Bearing features 50 mm bore, 90 mm OD, and 51.6 mm width, double-sealed and contact-sealed design, and UC2 series. Key specifications include Hardened Steel bearing and Nitrile Rubber seals, 35000 N dynamic and 23200 N static load ratings, and 3100 rpm Grease; temperature -40 to 200 deg C. Designed for mounted-unit service, this insert bearing combines practical shaft support with the specified locking and sealing arrangement.
NTN Ball Insert Bearing, Round Bore Light Duty, Series: UC2, 50 mm Bore, 90 mm OD, 51.6 mm Width, Double Seal Closure, 35000 N Load, Hardened Steel Bearing, Nitrile Rubber Seal, 3100 rpm Grease Maximum, -40 to 200 deg C
| Bearing Material | : | Hardened Steel |
| Bore Diameter | : | 50 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 35000 N |
| Maximum Speed | : | 3100 rpm Grease |
| Outside Diameter | : | 90 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | UC2 |
| Temperature Rating | : | -40 to 200 deg C |
| Type | : | Round Bore Light Duty |
| Width | : | 51.6 mm |
- Product type: Light-Duty Ball Insert Bearing
- Series: UC2
- Dimensions: 50 mm bore x 90 mm outside diameter x 51.6 mm width
- Design: Double seal; Contact seals
- Construction: Hardened Steel bearing; Nitrile-rubber seals
- Load ratings: 35,000 N dynamic / 23,200 N static
- Operating limits: 3,100 rpm (grease); -40 to 200 °C
- Precision class: ISO 0
- Lubrication: Relubricatable
- Spherical outside diameter
