NTN R3ZZ NTNR3ZZ
  1. pin-int

NTN R3ZZ NTNR3ZZ

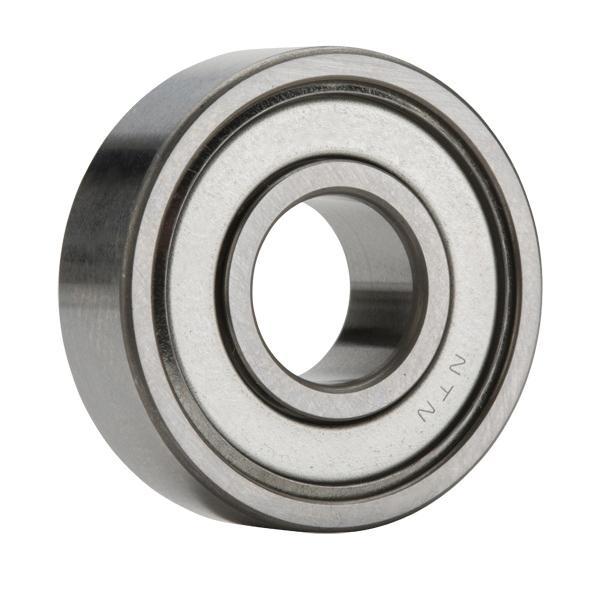

NTN R3ZZ Extra Small Round Bore Miniature Radial Ball Bearing, 3/16 in Dia Bore, 1/2 in OD, 1 Row, 0.1562 in W, 295 lbf Dynamic/110 lbf Static Load

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: NTNR3ZZ
  • MPN: R3ZZ
  • UPC: 662363004585
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

NTN Miniature Radial Ball Bearing, Extra Small Round Bore, 3/16 in Bore Dia, 1/2 in Outside Dia, 1 Row, 0.1562 in Width, Double Seal Closure, 295 lbf Dynamic/110 lbf Static, High Carbon Steel Bearing, Stainless Steel Cage, 41000 rpm Grease Maximum, -40 to 250 deg F, Polished Chrome

Bearing Material      :      High Carbon Steel
Bore Diameter      :      3/16 in
Cage Material      :      Stainless Steel
Closure Type      :      Double Seal
Finish      :      Polished Chrome
Load Capacity      :      295 lbf Dynamic/110 lbf Static
Maximum Speed      :      41000 rpm Grease
Number of Rows      :      1
Outside Diameter      :      1/2 in
Temperature Rating      :      -40 to 250 deg F
Type      :      Extra Small Round Bore
Width      :      0.1562 in
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_R3ZZ_Specification_Sheet.pdf
