NTN NU204EAT2X NTNNU204EAT2X
NTN NU204EAT2X Roller Bearing, 20 mm Dia Bore, 47 mm Dia Outside, 1 Rows, 14 mm W, 325000 N Dynamic, 247000 N Static Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNNU204EAT2X
- MPN: NU204EAT2X
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN NU204EAT2X Cylindrical Roller Bearing features 20 mm bore, 47 mm OD, and 14 mm width and single-row design. Key specifications include Nylon cage, 325000 N dynamic and 247000 N static load ratings, and 15000 rpm Grease/21600 rpm Oil; temperature -20 to 120 deg C. Cylindrical rollers provide high radial load capacity and rigidity for demanding rotating equipment.
NTN, NU204EAT2X, Roller Bearing, 20 mm Bore, 47 mm OD, 1 Rows, 14 mm Width, 325000 N Dynamic, 247000 N Static Load, Nylon Cage, 15000 rpm Grease/21600 rpm Oil Maximum, -20 to 120 deg C
| Bore Diameter | : | 20 mm |
| Cage Material | : | Nylon |
| Load Capacity | : | 325000 N Dynamic, 247000 N Static |
| Maximum Speed | : | 15000 rpm Grease/21600 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 47 mm |
| Temperature Rating | : | -20 to 120 deg C |
| Width | : | 14 mm |

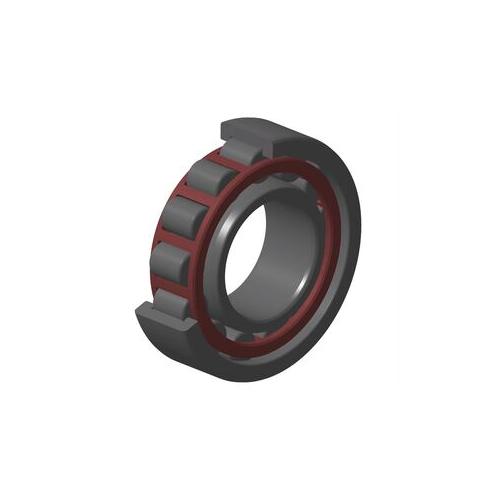

- Product type: Cylindrical Roller Bearing

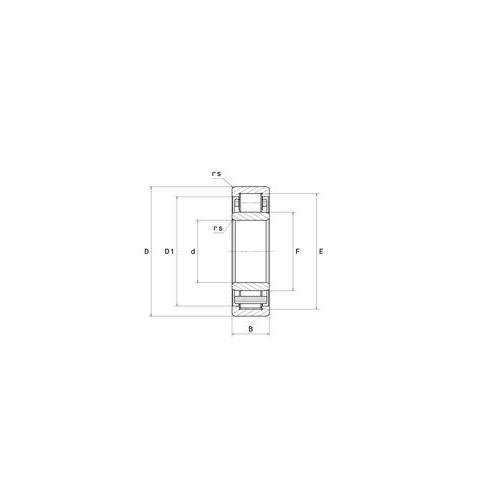

- Dimensions: 20 mm bore x 47 mm outside diameter x 14 mm width
- Design: Single row; separable; plain inner ring and two-rib outer ring; open
- Internal design: EA high-capacity / ULTAGE design
- Construction: Nylon cage
- Load ratings: 325,000 N dynamic / 247,000 N static
- Load direction: Radial load only; no axial-load accommodation
- Operating limits: 15,000 rpm (grease) / 21,600 rpm (oil); -20 to 120 °C
Specification Sheet
