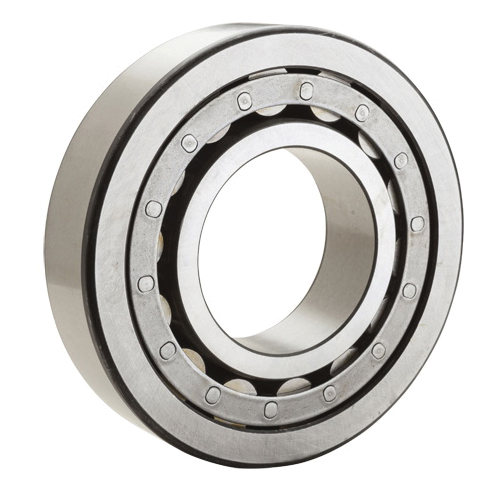

NTN NJ315ET2XC3 NTNNJ315EAT2XC3
NTN NJ315ET2XC3 Round Bore Separable Cylindrical Roller Bearing, 75 mm Dia Bore, 160 mm OD, 1 Row, 55 mm W, 240 kN Dynamic/263 kN Static Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNNJ315EAT2XC3
- MPN: NJ315ET2XC3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
These bearings use cylindrical rollers as the rolling elements and have a high load capacity. The rollers are guided by the ribs of the inner or outer ring. The inner and outer rings can be separated to facilitate assembly, since both inner and outer ring are normally press fitted to the shaft and housing, respectively. The rings can move freely in the axial direction on those with no inner or outer ring ribs, making cylindrical roller bearings ideal for applications that experience thermal expansion of the shaft, such as electric motors.
NTN Cylindrical Roller Bearing, Round Bore Separable, Series: NJ Series, 75 mm Bore Dia, 160 mm Outside Dia, 1 Row, 55 mm Width, Open Closure, 240 kN Dynamic/263 kN Static, Hardened Alloy Steel Bearing, Nylon Cage, 4000 rpm Grease/4700 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | Hardened Alloy Steel |
| Bore Diameter | : | 75 mm |
| Cage Material | : | Nylon |
| Closure Type | : | Open |
| Load Capacity | : | 240 kN Dynamic/263 kN Static |
| Maximum Speed | : | 4000 rpm Grease/4700 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 160 mm |
| Series | : | NJ Series |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Round Bore Separable |
| Width | : | 55 mm |
- Without oil hole
- Inner ring with one rib, outer ring with two ribs
