NTN NJ311EAG1C3 NTNNJ311EAG1C3

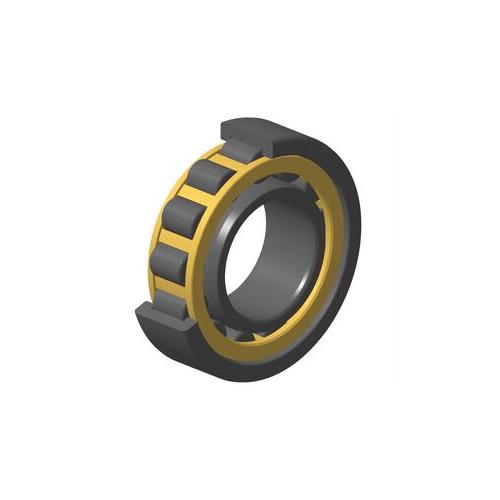

NTN NJ311EAG1C3 NJ3 Cylindrical Roller Bearing, 55 mm Dia Bore, 120 mm Dia Outside, 1 Rows, 29 mm W, 162 kN Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNNJ311EAG1C3
- MPN: NJ311EAG1C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
NTN NJ311EAG1C3 NJ3 Cylindrical Roller Bearing features 55 mm bore, 120 mm OD, and 29 mm width and single-row design. Key specifications include Brass cage and 5300 rpm Grease/7600 rpm Oil; temperature -40 to 120 deg C. Cylindrical rollers provide high radial load capacity and rigidity for demanding rotating equipment.
NTN, NJ311EAG1C3, Cylindrical Roller Bearing, Series: NJ3, 55 mm Bore, 120 mm OD, 1 Rows, 29 mm Width, 162 kN Load, Brass Cage, 5300 rpm Grease/7600 rpm Oil Maximum, -40 to 120 deg C
| Bore Diameter | : | 55 mm |
| Cage Material | : | Brass |
| Load Capacity | : | 162 kN |
| Maximum Speed | : | 5300 rpm Grease/7600 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 120 mm |
| Series | : | NJ3 |
| Temperature Rating | : | -40 to 120 deg C |
| Width | : | 29 mm |
- Product type: Cylindrical Roller Bearing
- Dimensions: 55 mm bore x 120 mm outside diameter x 29 mm width
- Design: Single row; separable; one-rib inner ring and two-rib outer ring; open
- Internal design: EA high-capacity / ULTAGE design
- Construction: Machined-brass cage
- Load direction: Radial load plus limited axial load in one direction
- Operating limits: 5,300 rpm (grease) / 7,600 rpm (oil); -40 to 120 °C
- Radial internal clearance: C3
- Load capacity: 162 kN
