NTN N319EG1C3 NTNN319EG1C3

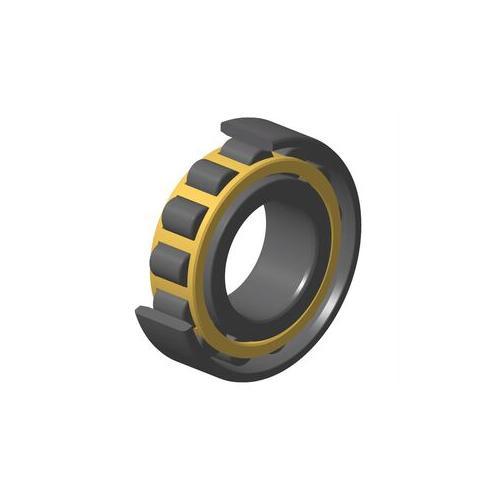

NTN N319EG1C3 N3 Cylindrical Roller Bearing, 95 mm Dia Bore, 200 mm Dia Outside, 1 Rows, 45 mm W, 370 kN Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNN319EG1C3
- MPN: N319EG1C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
NTN N319EG1C3 N3 Cylindrical Roller Bearing features 95 mm bore, 200 mm OD, and 45 mm width and single-row design. Key specifications include Brass cage and 3100 rpm Grease/3600 rpm Oil; temperature -40 to 120 deg C. Cylindrical rollers provide high radial load capacity and rigidity for demanding rotating equipment.
NTN, N319EG1C3, Cylindrical Roller Bearing, Series: N3, 95 mm Bore, 200 mm OD, 1 Rows, 45 mm Width, 370 kN Load, Brass Cage, 3100 rpm Grease/3600 rpm Oil Maximum, -40 to 120 deg C
| Bore Diameter | : | 95 mm |
| Cage Material | : | Brass |
| Load Capacity | : | 370 kN |
| Maximum Speed | : | 3100 rpm Grease/3600 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 200 mm |
| Series | : | N3 |
| Temperature Rating | : | -40 to 120 deg C |
| Width | : | 45 mm |
- Product type: Cylindrical Roller Bearing
- Dimensions: 95 mm bore x 200 mm outside diameter x 45 mm width
- Design: Single row; separable; two-rib inner ring with roller assembly and plain outer ring; open
- Internal design: E high-capacity design
- Construction: Machined-brass cage
- Load direction: Radial load only; no axial-load accommodation
- Operating limits: 3,100 rpm (grease) / 3,600 rpm (oil); -40 to 120 °C
- Radial internal clearance: C3
- Load capacity: 370 kN
