NTN JELP-1 NTNJELP1

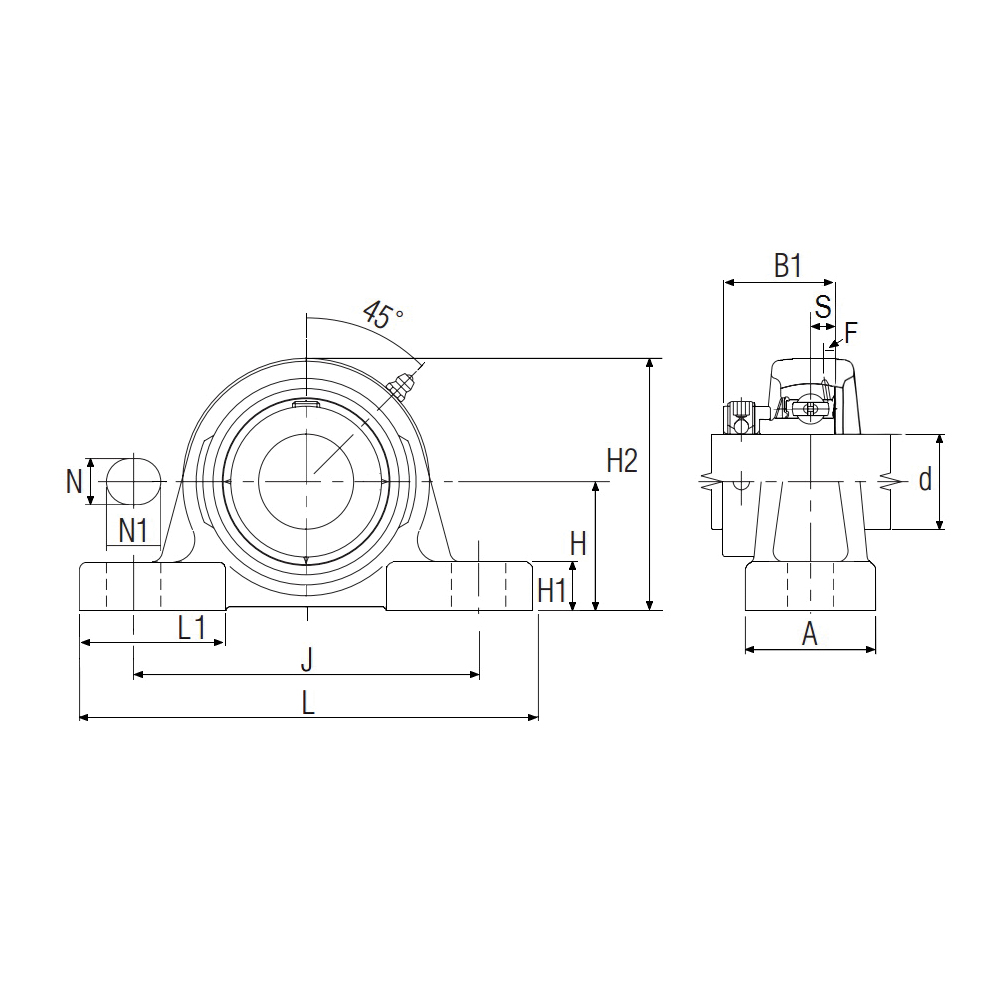

NTN JELP-1 1-Piece High Base Pillow Block Ball Bearing Unit, 25.4 mm Dia Bore, 104.8 mm L Bolt Center-to-Center, 36.5 mm Base to Bore Centerline, 139.7 mm OAL x 70.6 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNJELP1
- MPN: JELP-1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
NTN Pillow Block Ball Bearing Unit, 1-Piece High Base, Series: JELP, 25.4 mm Bore, 104.8 mm Bolt Center-to-Center Length, 36.5 mm Base to Bore Centerline, 139.7 mm Overall Length, 38.1 mm Overall Width, 70.6 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 38.1 mm Base Width, Eccentric Locking Collar Locking Device, Contact Seal, Non-Expansion (Fixed), 14000 N Dynamic/7850 N Static Load, -40 to 120 deg C, 5900 rpm Maximum, Cast Iron, Black Oxide
| Base Width | : | 38.1 mm |
| Base to Bore Centerline | : | 36.5 mm |
| Bolt Center-to-Center Length | : | 104.8 mm |
| Bore Diameter | : | 25.4 mm |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Black Oxide |
| Load Capacity | : | 14000 N Dynamic/7850 N Static |
| Locking Device | : | Eccentric Locking Collar |
| Material | : | Cast Iron |
| Maximum Speed | : | 5900 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 70.6 mm |
| Overall Length | : | 139.7 mm |
| Overall Width | : | 38.1 mm |
| Seal Type | : | Contact |
| Series | : | JELP |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece High Base |
- Relubricatable
- Nitrile rubber seal
- Open end
