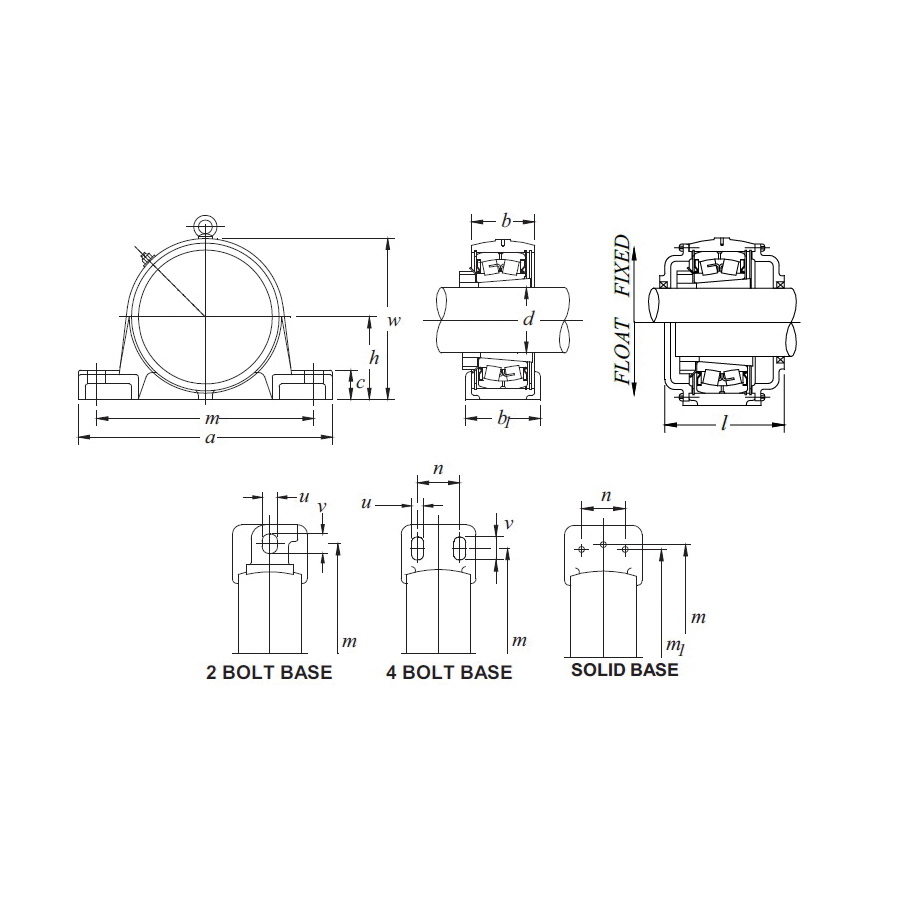

NTN CM-SPAW2222-315N1 SPAW 1-Piece Heavy Duty Pillow Block Spherical Roller Bearing Unit, 100.013 mm Dia Bore, 344.5 mm L Bolt Center-to-Center, 125.4 mm Base to Bore Centerline, 419 mm OAL x 262 mm OAH

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: NTNCM-SPAW2222-315N1
  • MPN: CM-SPAW2222-315N1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

NTN CM-SPAW2222-315N1 SPAW 1-Piece Heavy Duty Pillow Block Spherical Roller Bearing Unit is designed for industrial bearing and power-transmission service. Key specifications include Ductile Iron housing, 602000 N dynamic and 643000 N static load ratings, and 1400 rpm; temperature -40 to 200 deg C. Its spherical roller geometry accommodates misalignment while providing high radial load capacity and useful axial-load capability.

NTN Pillow Block Spherical Roller Bearing Unit, 1-Piece Heavy Duty, Series: SPAW, 100.013 mm Bore, 344.5 mm Bolt Center-to-Center Length, 125.4 mm Base to Bore Centerline, 419 mm Overall Length, 184.988 mm Overall Width, 262 mm Overall Height, Two-Bolt Base Mounting, 121 mm Base Width, Adapter Mounted Locking Device, 602000 N Dynamic/643000 N Static Load, -40 to 200 deg C, 1400 rpm Maximum, Ductile Iron

Base Width      :      121 mm
Base to Bore Centerline      :      125.4 mm
Bolt Center-to-Center Length      :      344.5 mm
Bore Diameter      :      100.013 mm
Load Capacity      :      602000 N Dynamic/643000 N Static
Locking Device      :      Adapter Mounted
Material      :      Ductile Iron
Maximum Speed      :      1400 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      262 mm
Overall Length      :      419 mm
Overall Width      :      184.988 mm
Series      :      SPAW
Temperature Rating      :      -40 to 200 deg C
Type      :      1-Piece Heavy Duty
  • Product type: Spherical Roller Pillow Block
  • Construction: Ductile Iron housing
  • Load ratings: 602,000 N dynamic / 643,000 N static
  • Operating limits: 1,400 rpm; -40 to 200 °C
  • Bore diameter: 100.013 mm
  • Housing dimensions: 419 mm length; 262 mm height; 184.988 mm width
  • Mounting: 2-bolt base; Adapter Mounted locking; 344.5 mm bolt spacing
  • Additional specifications: 125.4 mm base-to-bore centerline; 121 mm base width
  • Lubrication: Relubricatable
