NTN C-SPAW2226-408N1 NTNC-SPAW2226-408N1

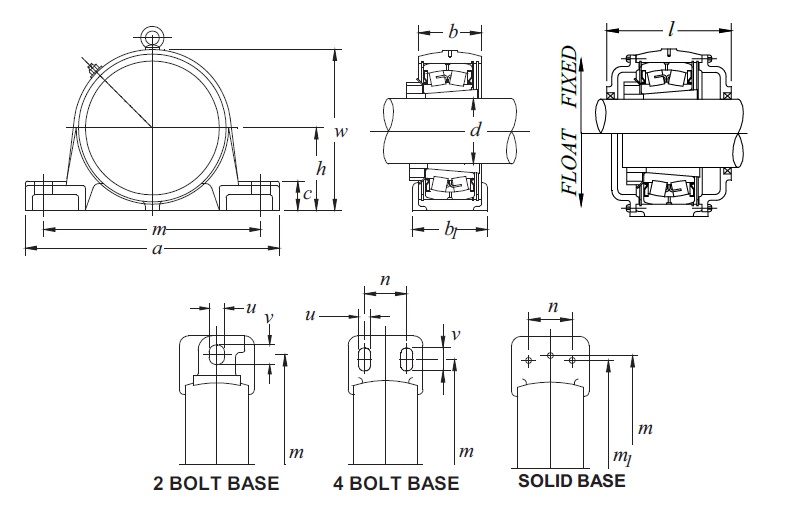

NTN C-SPAW2226-408N1 SPAW 1-Piece Heavy Duty Sealed Spherical Pillow Block, 114.300 mm Dia Bore, 388.9 mm L Bolt Center-to-Center, 152.4 mm Base to Bore Centerline, 467 mm OAL x 295 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNC-SPAW2226-408N1
- MPN: C-SPAW2226-408N1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN, C-SPAW2226-408N1, Sealed Spherical Pillow Block, 1-Piece Heavy Duty, Series: SPAW, 114.300 mm Bore, 388.9 mm Bolt Center-to-Center Length, 152.4 mm Base to Bore Centerline, 467 mm Overall Length, 218.999 mm Overall Width, 295 mm Overall Height, Four-Bolt Base Mounting, 130 mm Base Width, Adapter Mounted Locking Device, 808000 N Dynamic/898000 N Static Load, -40 to 200 deg C, 1200 rpm Maximum, Ductile Iron
| Base Width | : | 130 mm |
| Base to Bore Centerline | : | 152.4 mm |
| Bolt Center-to-Center Length | : | 388.9 mm |
| Bore Diameter | : | 114.300 mm |
| Load Capacity | : | 808000 N Dynamic/898000 N Static |
| Locking Device | : | Adapter Mounted |
| Material | : | Ductile Iron |
| Maximum Speed | : | 1200 rpm |
| Mounting Type | : | Four-Bolt Base |
| Overall Height | : | 295 mm |
| Overall Length | : | 467 mm |
| Overall Width | : | 218.999 mm |
| Series | : | SPAW |
| Temperature Rating | : | -40 to 200 deg C |
| Type | : | 1-Piece Heavy Duty |
