NTN BL312NR NTNBL312NR

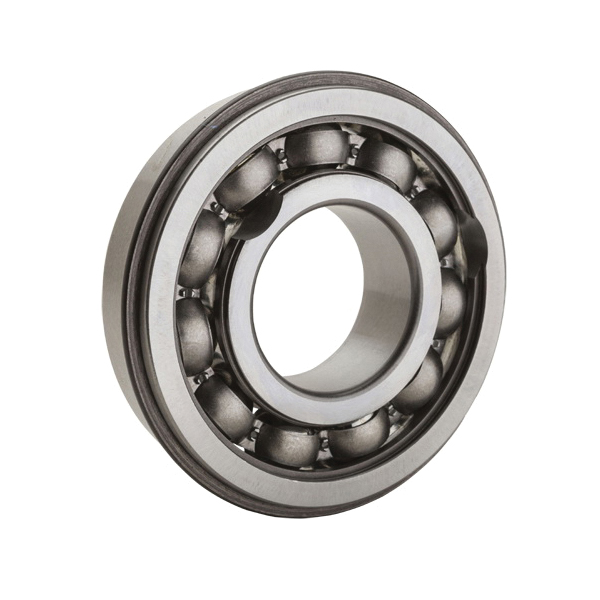

NTN BL312NR Round Bore Maximum Capacity Standard Medium Deep Groove Radial Ball Bearing, 60 mm Dia Bore, 130 mm OD, 1 Row, 31 mm W, 24100 lb Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNBL312NR
- MPN: BL312NR
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Deep groove ball bearings are very widely used. A deep groove is formed on each inner and outer ring of the bearing enabling them to sustain radial and axial loads in either direction as well as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications.
NTN Deep Groove Radial Ball Bearing, Round Bore Maximum Capacity Standard Medium, Series: BL3, 60 mm Bore Dia, 130 mm Outside Dia, 1 Row, 31 mm W, Open Closure, 24100 lb, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 4800 rpm Grease/5700 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | High Carbon Chrome Steel |
| Bore Diameter | : | 60 mm |
| Cage Material | : | Pressed Steel |
| Closure Type | : | Open |
| Load Capacity | : | 24100 lb |
| Maximum Speed | : | 4800 rpm Grease/5700 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 130 mm |
| Series | : | BL3 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Round Bore Maximum Capacity Standard Medium |
| Width | : | 31 mm |
- Snap ring groove on outer ring
- ISO class 0 precision rating
- CN radial clearance
- 24100 lb dynamic/17600 lb static
