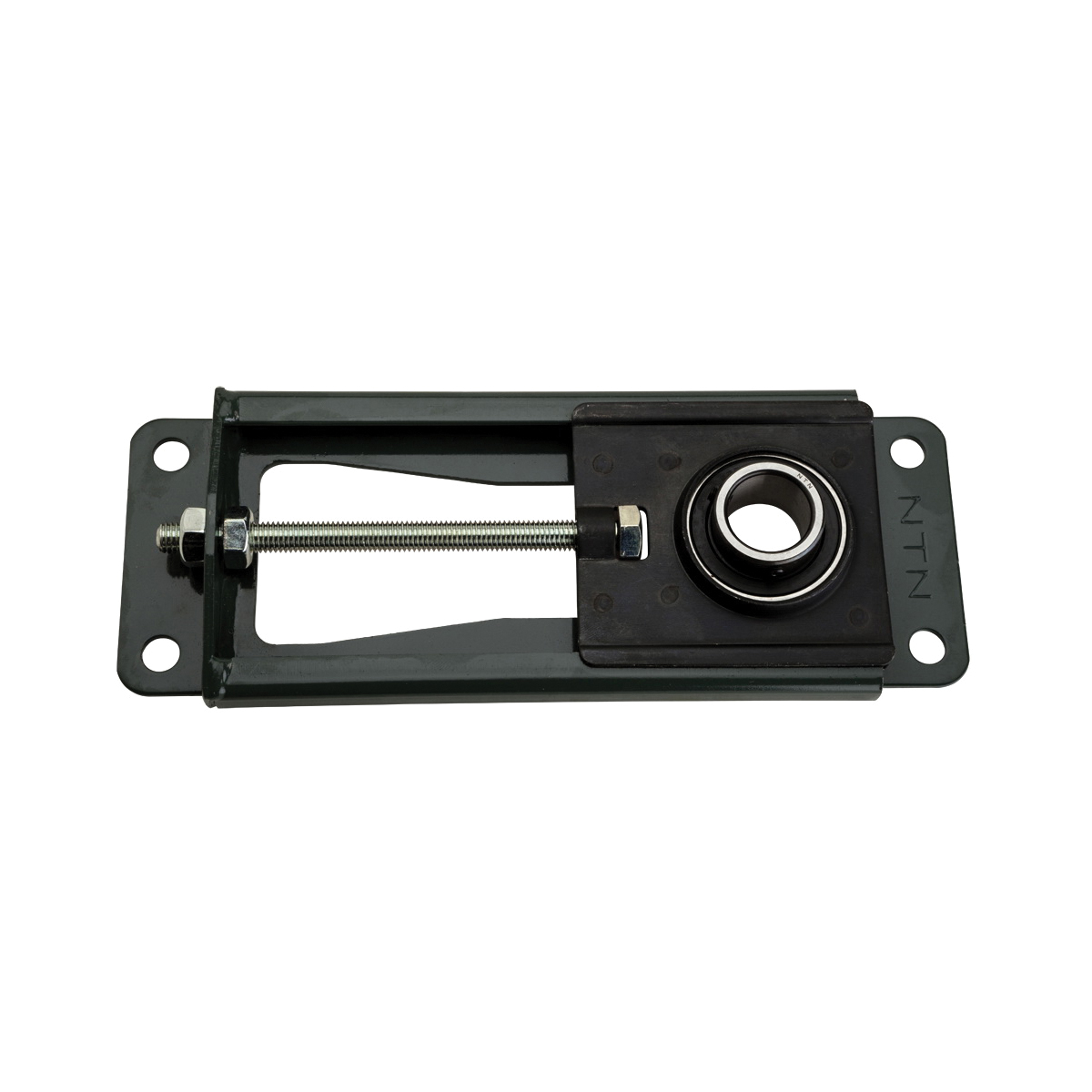

NTN Mini Stretcher Unit, Light Duty, Series: ASPT, 31 mm Width, Cast Iron
| Material | : | Cast Iron |
| Series | : | ASPT |
| Type | : | Light Duty |
| Width | : | 31 mm |
- The stretcher unit is designed to only take a horizontal radial load, in line with the adjustment direction
- Axial loads or vertical radial loads can deform or break the housing
- Narrow inner ring
- Setscrew locking device
- Non-relubricatable
- AS202 ball bearing
- -40 to 120 deg C operating temperature

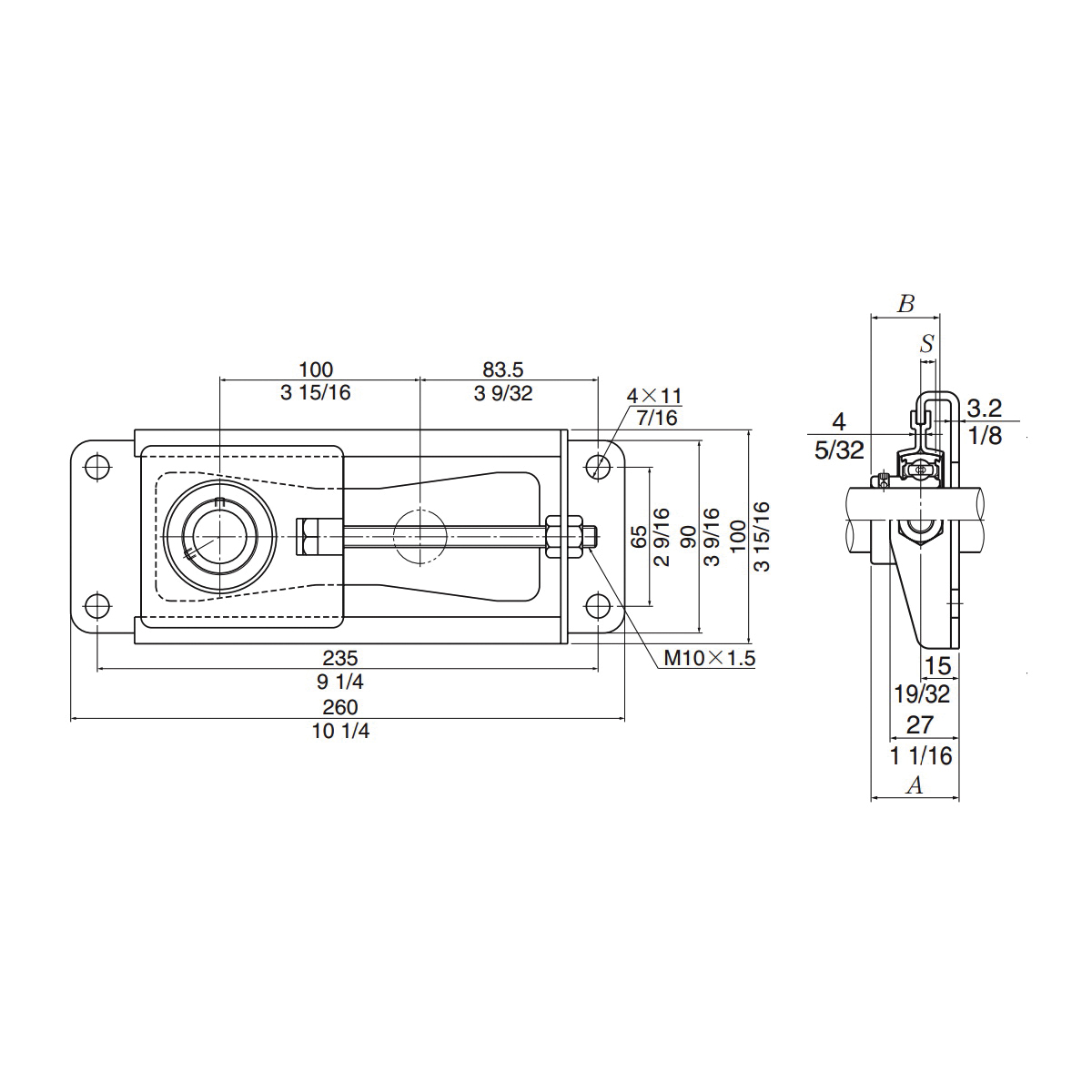

- 65 mm bolt center-to-center width
- 235 mm bolt center-to-center length
- 3.2 mm W base
- 100 mm travel
- M10 bolt
- 260 mm L x 100 mm H stretcher unit
- ASPT2 take-up frame
- 10000 rpm rotational speed
- 9600 N dynamic/4600 N static
