NTN ASPP204 NTNASPP204

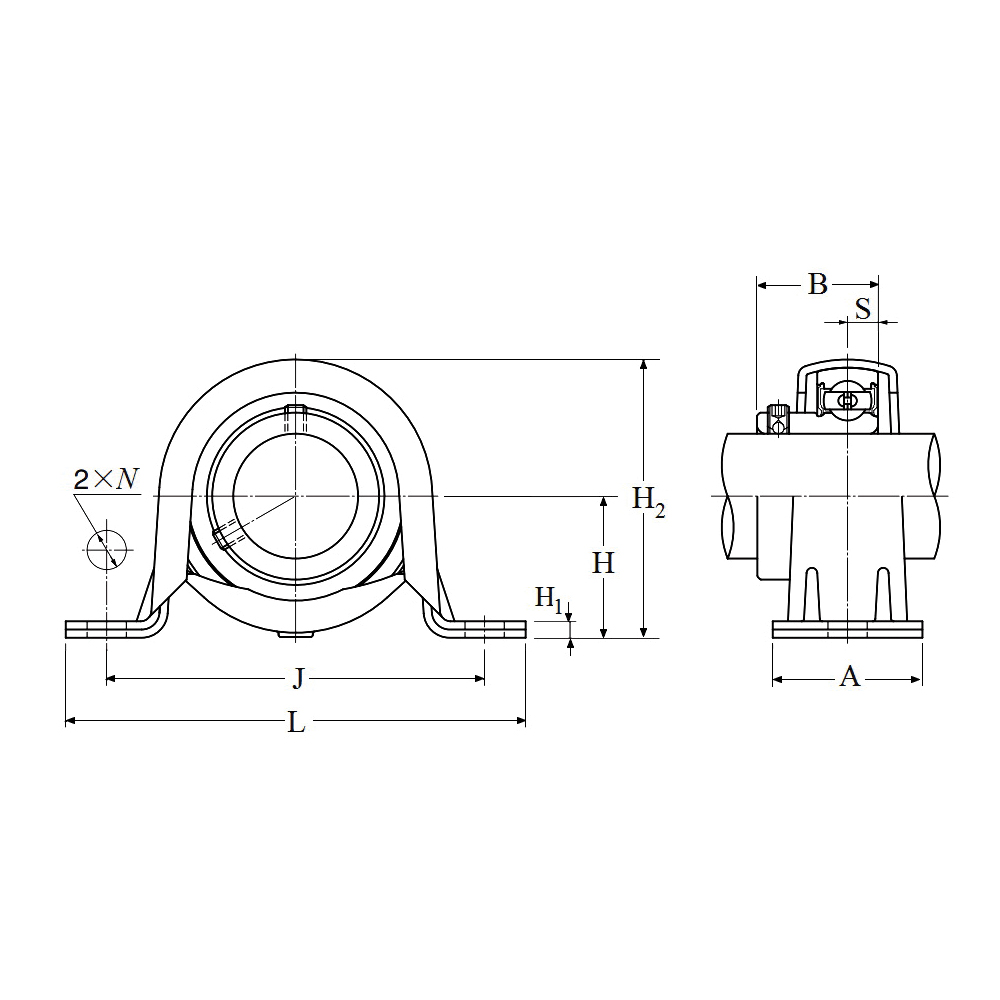

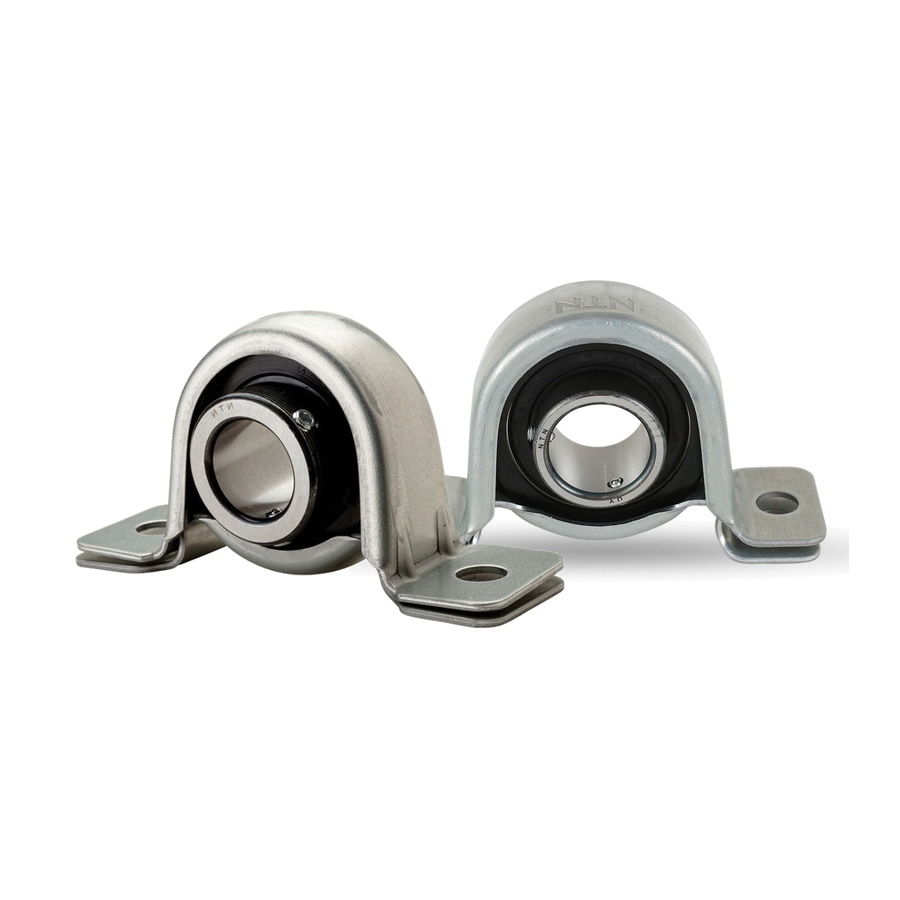

NTN ASPP204 1-Piece Light Duty Pillow Block Ball Bearing Unit, 20 mm Dia Bore, 76 mm L Bolt Center-to-Center, 25.4 mm Base to Bore Centerline, 98 mm OAL x 50.5 mm OAH
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNASPP204
- MPN: ASPP204
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty, Series: ASPP2, 20 mm Bore, 76 mm Bolt Center-to-Center Length, 25.4 mm Base to Bore Centerline, 98 mm Overall Length, 34 mm Overall Width, 50.5 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 32 mm Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 12800 N Dynamic/6650 N Static Load, -40 to 120 deg C, 6700 rpm Maximum, Pressed Steel, Uncoated
| Base Width | : | 32 mm |
| Base to Bore Centerline | : | 25.4 mm |
| Bolt Center-to-Center Length | : | 76 mm |
| Bore Diameter | : | 20 mm |
| Bore Type | : | Round |
| Expansion Type | : | Non-Expansion (Fixed) |
| Finish | : | Uncoated |
| Load Capacity | : | 12800 N Dynamic/6650 N Static |
| Locking Device | : | Set Screw |
| Material | : | Pressed Steel |
| Maximum Speed | : | 6700 rpm |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 50.5 mm |
| Overall Length | : | 98 mm |
| Overall Width | : | 34 mm |
| Seal Type | : | Contact |
| Series | : | ASPP2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Non-relubricatable
- Nitrile rubber seal
- Open end
