NTN ASPFL202 NTNASPFL202

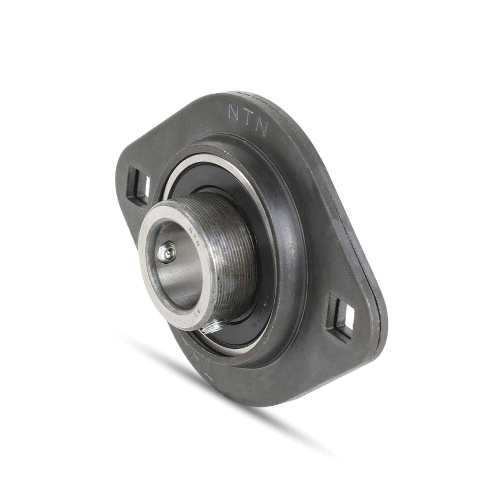

NTN ASPFL202 2-Piece Light Duty Ball Bearing Unit, 15 mm Dia Bore, 63.5 mm L Bolt Center-to-Center, 63.5 mm Dia Bolt Circle, 2-Bolt Rhombus Flange Mount, 81 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNASPFL202
- MPN: ASPFL202
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 2-Piece Light Duty, Series: ASPFL2, 15 mm Bore, 63.5 mm Bolt Center-to-Center Length, 63.5 mm Diameter Bolt Circle, 2-Bolt Rhombus Flange Mounting, 81 mm Overall Length/Diameter, 23 mm Overall Depth, 59 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 9600 N Dynamic/4600 N Static Load, 10000 rpm Maximum, -40 to 120 deg C
| Bolt Center-to-Center Length | : | 63.5 mm |
| Bolt Circle Diameter | : | 63.5 mm |
| Bore Diameter | : | 15 mm |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Load Capacity | : | 9600 N Dynamic/4600 N Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 10000 rpm |
| Overall Depth | : | 23 mm |
| Overall Height | : | 59 mm |
| Overall Length/Diameter | : | 81 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | ASPFL2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 2-Piece Light Duty |
- Non-relubricatable
- Contact seal
- Pressed steel housing
