NTN ASPF205-100 NTNASPF205-100

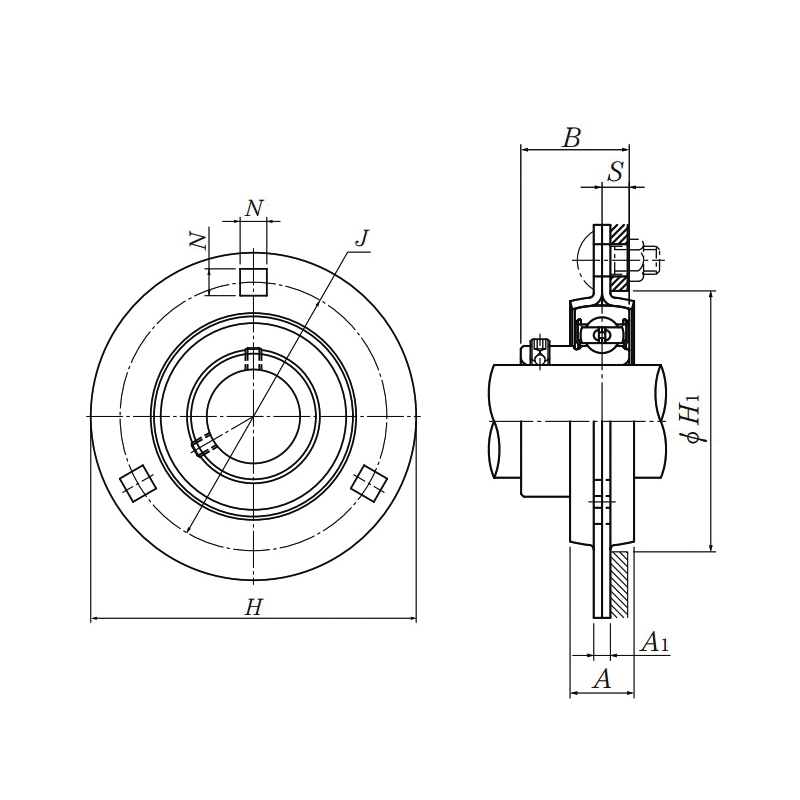

NTN ASPF205-100 2-Piece Light Duty Ball Bearing Unit, 25.4 mm Dia Bore, 76 mm Dia Bolt Circle, 3-Bolt Round Flange Mount, 95 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNASPF205-100
- MPN: ASPF205-100
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 2-Piece Light Duty, Series: ASPF2, 25.4 mm Bore, 76 mm Diameter Bolt Circle, 3-Bolt Round Flange Mounting, 95 mm Overall Length/Diameter, 28.5 mm Overall Depth, 95 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 14000 N Dynamic/7850 N Static Load, 5900 rpm Maximum, -40 to 120 deg C
| Bolt Circle Diameter | : | 76 mm |
| Bore Diameter | : | 25.4 mm |
| Flange Mounting Type | : | 3-Bolt Round |
| Load Capacity | : | 14000 N Dynamic/7850 N Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 5900 rpm |
| Overall Depth | : | 28.5 mm |
| Overall Height | : | 95 mm |
| Overall Length/Diameter | : | 95 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | ASPF2 |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 2-Piece Light Duty |
- Non-relubricatable
- Contact seal
- Pressed steel housing
