NTN ARFLU-1 NTNARFLU1

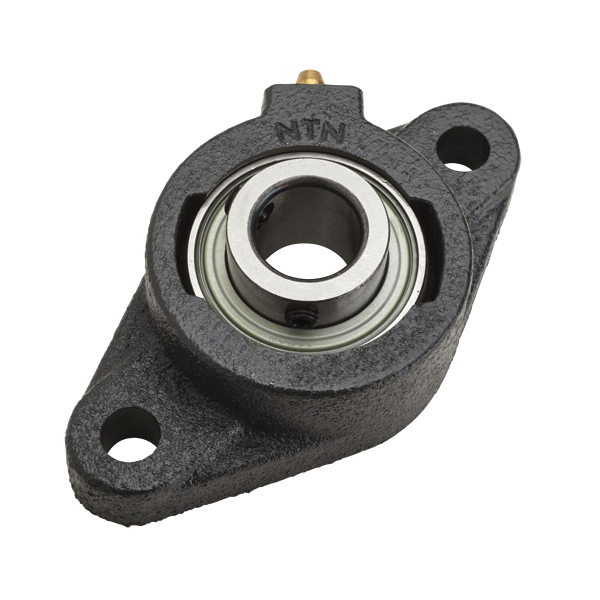

NTN ARFLU-1 1-Piece Light Duty Ball Bearing Unit, 25.4 mm Dia Bore, 98.8 mm L Bolt Center-to-Center, 2-Bolt Rhombus Flange Mount, 124.6 mm OAL/Dia
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTNARFLU1
- MPN: ARFLU-1
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN Ball Bearing Unit, 1-Piece Light Duty, Series: ARFLU, 25.4 mm Bore, 98.8 mm Bolt Center-to-Center Length, 2-Bolt Rhombus Flange Mounting, 124.6 mm Overall Length/Diameter, 38.5 mm Overall Depth, 69.9 mm Overall Height, Set Screw Locking Device, Nitrile Rubber Seal, 14000 N Dynamic/7850 N Static Load, 5900 rpm Maximum, -40 to 120 deg C, Black Oxide
| Bolt Center-to-Center Length | : | 98.8 mm |
| Bore Diameter | : | 25.4 mm |
| Finish | : | Black Oxide |
| Flange Mounting Type | : | 2-Bolt Rhombus |
| Load Capacity | : | 14000 N Dynamic/7850 N Static |
| Locking Device | : | Set Screw |
| Maximum Speed | : | 5900 rpm |
| Overall Depth | : | 38.5 mm |
| Overall Height | : | 69.9 mm |
| Overall Length/Diameter | : | 124.6 mm |
| Seal Material | : | Nitrile Rubber |
| Series | : | ARFLU |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | 1-Piece Light Duty |
- Relubricatable
- Contact seal
- Cast iron housing
