NTN 8503

NTN 8503 8000 Round Bore Standard Small Deep Groove Radial Ball Bearing, 17 mm Dia Bore, 40 mm OD, 1 Row, 14.288 mm W, 53500 N Load

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: BCA8503
  • MPN: 8503
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

NTN 8503 8000 Round Bore Standard Small Deep Groove Radial Ball Bearing features 17 mm bore, 40 mm OD, and 14.288 mm width and single-row and Single Sealed design. Key specifications include High Carbon Chrome Steel bearing, Pressed Steel cage, and Nitrile Rubber seals, 9600 N dynamic and 53500 N static load ratings, and 12000 rpm Grease; temperature -40 to 120 deg C. The deep-groove design supports radial loads plus axial loads in either direction while remaining suitable for high-speed operation.

NTN Deep Groove Radial Ball Bearing, Round Bore Standard Small, Series: 8000, 17 mm Bore Dia, 40 mm Outside Dia, 1 Row, 14.288 mm W, Single Sealed Closure, 53500 N, High Carbon Chrome Steel Bearing, Nitrile Rubber Seal, Pressed Steel Cage, 12000 rpm Grease Maximum, -40 to 120 deg C

Bearing Material      :      High Carbon Chrome Steel
Bore Diameter      :      17 mm
Cage Material      :      Pressed Steel
Closure Type      :      Single Sealed
Load Capacity      :      53500 N
Maximum Speed      :      12000 rpm Grease
Number of Rows      :      1
Outside Diameter      :      40 mm
Seal Material      :      Nitrile Rubber
Series      :      8000
Temperature Rating      :      -40 to 120 deg C
Type      :      Round Bore Standard Small
Width      :      14.288 mm
  • Product type: Deep Groove Ball Bearing

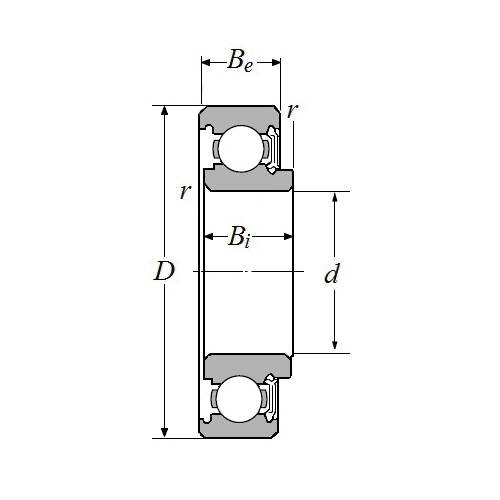

  • Dimensions: 17 mm bore x 40 mm outside diameter x 14.288 mm width
  • Design: Single row; Single Sealed
  • Construction: High-carbon chrome steel bearing; Pressed-steel cage; Nitrile-rubber seals
  • Load ratings: 9,600 N dynamic / 53,500 N static
  • Operating limits: 12,000 rpm (grease); -40 to 120 °C
  • Radial internal clearance: CN
  • Precision class: ISO 0
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_3201_Catalog.pdf
