NTN 696ZZA NTN696ZZ

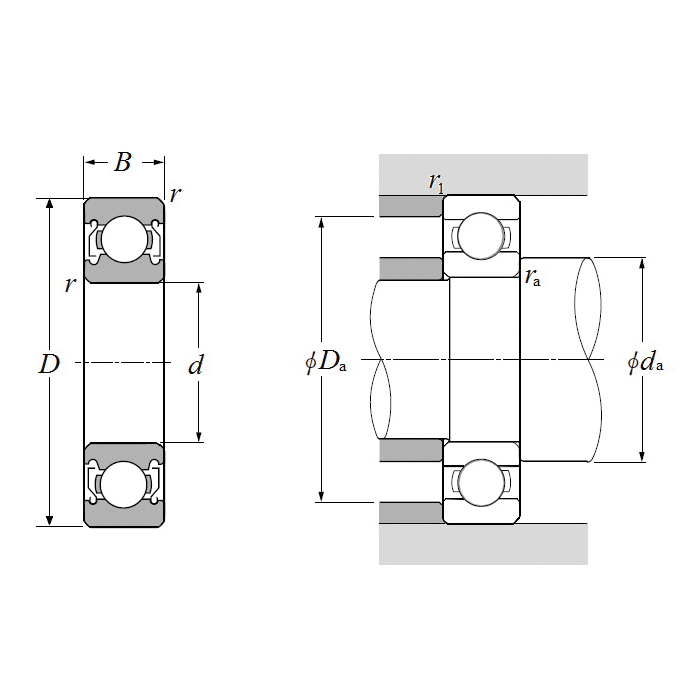

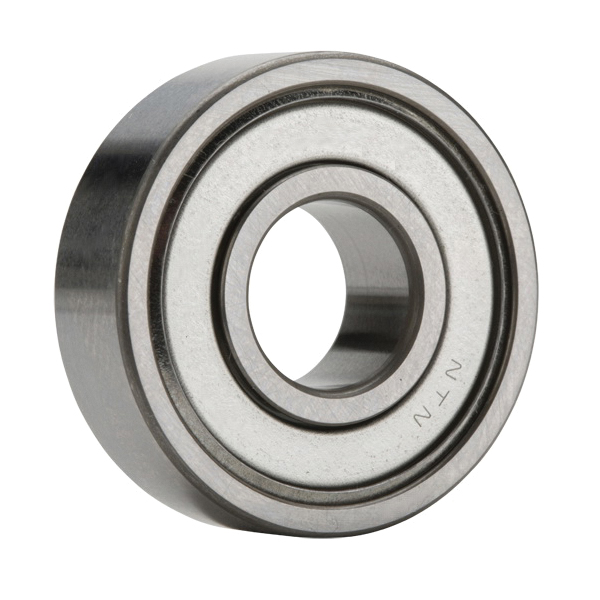

NTN 696ZZA Micro Round Bore Miniature Extra Small Radial Ball Bearing, 6 mm Dia Bore, 15 mm OD, 1 Row, 5 mm W, 1350 N Load

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: NTN696ZZ
  • MPN: 696ZZA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Single Row Radial Ball Bearings are the most widely used bearings and utilize an uninterrupted raceway, which makes these bearings suitable for radial loads, or a combination of thrust and radial loads. This design permits precision tolerances even at high speed operation. The cage in this bearing is pressed steel. For high speed bearings, machined brass cages are available. Bearings with locating snap rings are also available.

NTN Radial Ball Bearing, Round Bore Miniature Extra Small, Series: Micro, 6 mm Bore Dia, 15 mm Outside Dia, 1 Row, 5 mm W, Removable Double Shielded Closure, 1350 N, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 37000 rpm Grease Maximum, -40 to 120 deg C

Bearing Material      :      High Carbon Chrome Steel
Bore Diameter      :      6 mm
Cage Material      :      Pressed Steel
Closure Type      :      Removable Double Shielded
Load Capacity      :      1350 N
Maximum Speed      :      37000 rpm Grease
Number of Rows      :      1
Outside Diameter      :      15 mm
Series      :      Micro
Temperature Rating      :      -40 to 120 deg C
Type      :      Round Bore Miniature Extra Small
Width      :      5 mm
  • The sealed V-slot around the inner ring creates an air and grease pocket which increases the labyrinth effect
  • This is a non-contact, low-friction torque type bearing assembly, which can be used effectively for general protection
  • Removable steel shield
  • Normal clearance
  • ISO class 0 precision rating
  • 1350 N dynamic/530 N static
