NTN 32036XE1 NTN32036XE1
  1. pin-int

NTN 32036XE1 NTN32036XE1

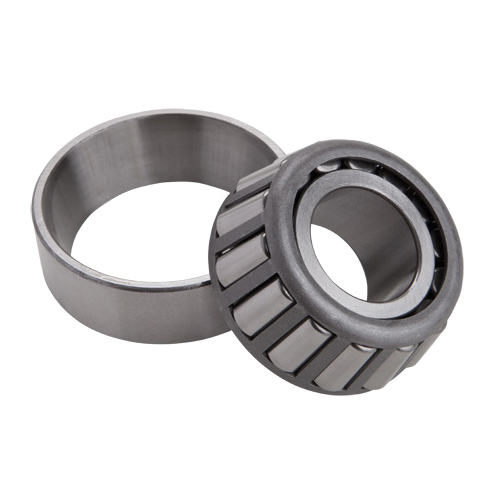

NTN 32036XE1 Cone and Cup Style Round Bore Tapered Roller Bearing Set, 180 mm Dia Bore, 280 mm OD, 1 Row, 64 mm W, 645 kN Dynamic/117 kN Static Load

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: NTN32036XE1
  • MPN: 32036XE1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

NTN Tapered Roller Bearing Set, Cone and Cup Style Round Bore, 180 mm Bore Dia, 280 mm Outside Dia, 1 Row, 64 mm Width, Open Closure, 645 kN Dynamic/117 kN Static, Case Carburized Steel Bearing, 1200 rpm Grease/1600 rpm Oil Maximum, -40 to 120 deg C

Bearing Material      :      Case Carburized Steel
Bore Diameter      :      180 mm
Closure Type      :      Open
Load Capacity      :      645 kN Dynamic/117 kN Static
Maximum Speed      :      1200 rpm Grease/1600 rpm Oil
Number of Rows      :      1
Outside Diameter      :      280 mm
Temperature Rating      :      -40 to 120 deg C
Type      :      Cone and Cup Style Round Bore
Width      :      64 mm
  • Without oil hole
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_32036XE1_Specification_Sheet.pdf
