NTN 29418E NTN29418E

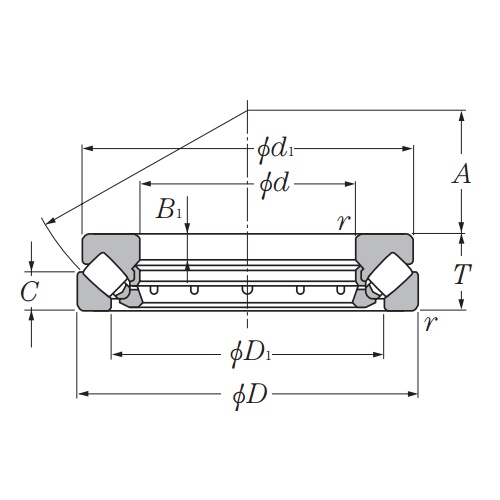

Just like spherical roller bearings, the center of the spherical surface for spherical roller thrust bearings is the point where the raceway surface of the housing raceway washer meets the center axis of the bearing. Since spherical roller thrust bearings incorporate barrel-shaped rollers as rolling elements, they also have self-aligning properties. Under normal load conditions, the allowable misalignment is 1 deg to 2 deg, although this will vary depending upon the bearing's dimension series. These bearings use machined copper alloy cages and a guide sleeve is attached to the inner ring to guide the cage. The axial load capacity of these bearings is high, and a certain amount of radial load can also be accommodated when the ring is in an axially loaded state.

NTN Spherical Roller Thrust Bearing, Round Bore Self-Aligning, Series: 294, 90 mm Bore Dia, 190 mm Outside Dia, 1 Rows, 60 mm Width, 2040000 N, Through Hardened Steel Bearing, 2100 rpm Maximum, -40 to 200 deg C

• Plain ring modification
• Open enclosure
• Pressed steel cage
• CN radial clearance
• 2.1 mm fillet radius
• 933000 N dynamic/2040000 N static

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_16001_Catalog.pdf
