NTN 29230 NTN29230

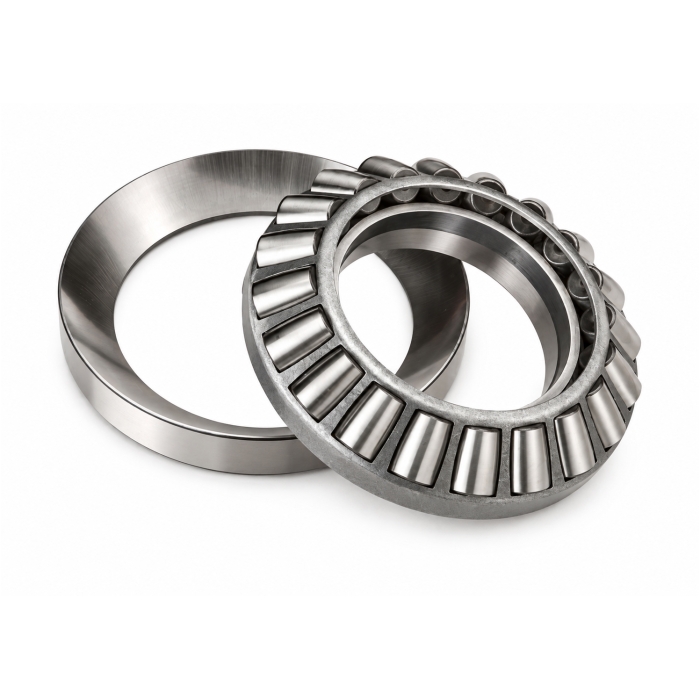

NTN 29230 Round Bore Self-Aligning Spherical Roller Thrust Bearing, 150 mm Dia Bore, 215 mm OD, 1 Row, 39 mm W, 1340000 N Load

  • Manufacturer: NTN
  • Brand Name: NTN
  • Part Number: NTN29230
  • MPN: 29230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Pricing and Availability

Just like spherical roller bearings, the center of the spherical surface for spherical roller thrust bearings is the point where the raceway surface of the housing raceway washer meets the center axis of the bearing. Since spherical roller thrust bearings incorporate barrel-shaped rollers as rolling elements, they also have self-aligning properties. Under normal load conditions, the allowable misalignment is 1 deg to 2 deg, although this will vary depending upon the bearing's dimension series. These bearings use machined copper alloy cages and a guide sleeve is attached to the inner ring to guide the cage. The axial load capacity of these bearings is high, and a certain amount of radial load can also be accommodated when the ring is in an axially loaded state.

NTN Spherical Roller Thrust Bearing, Round Bore Self-Aligning, Series: 292, 150 mm Bore Dia, 215 mm Outside Dia, 1 Rows, 39 mm Width, 1340000 N, Through Hardened Steel Bearing, 1800 rpm Maximum, -40 to 120 deg C

Bearing Material      :      Through Hardened Steel
Bore Diameter      :      150 mm
Load Capacity      :      1340000 N
Maximum Speed      :      1800 rpm
Number of Rows      :      1
Outside Diameter      :      215 mm
Series      :      292
Temperature Rating      :      -40 to 120 deg C
Type      :      Round Bore Self-Aligning
Width      :      39 mm
  • Plain ring modification
  • Open enclosure
  • High strength 2-piece machined brass cage
  • CN radial clearance
  • 1.5 mm fillet radius
  • 340000 N dynamic/1340000 N static
