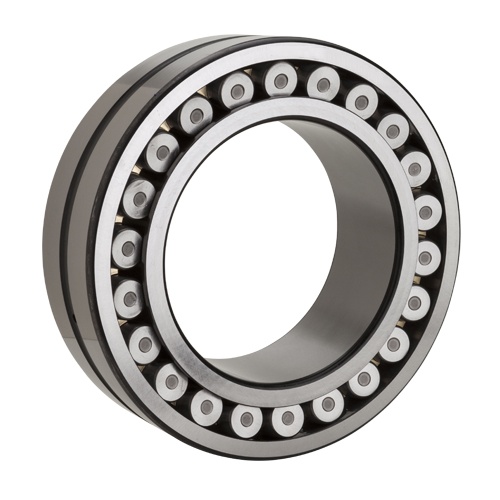

NTN 23160BW33C3 NTN23160BW33C3

Spherical roller bearings equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel shaped rolling elements, NTN spherical roller bearings are able to adjust center alignment to handle inclination of the axle or shaft. There are variety of bearing types that differ according to internal design. Spherical roller bearings include as type equipped with an inner ring with a tapered bore. The bearing can easily be mounted on a shaft by means of an adapter or withdrawal sleeve. The bearing is capable of supporting heavy loads, and is therefore often used in industrial machinery. When heavy axial load is applied to the bearing, the load on rollers of another row is disappeared, and can cause problems. Attention must therefore be paid to operating conditions.

NTN Spherical Roller Bearing, Series: 231, 300 mm Bore Dia, 500 mm Outside Dia, 2 Rows, 160 mm W, Open Closure, 5000 kN, Through Hardened Steel Bearing, Steel Cage, 600 rpm Grease/780 rpm Oil Maximum, -40 to 120 deg C

• Spherical roller bearings possess the same self-aligning properties as other self-aligning bearings
• Adapters are used for installation of bearings with tapered bore on cylindrical shafts
• C3 radial clearance greater than normal
• Machined cage
• 2750 kN dynamic/5000 kN static
• Round bore

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NTN_3201_Catalog.pdf
• VIDEO LINK https://youtu.be/4rXPAd9xD3w
