NTN 22213EMW33C3 NTN22213EMW33C3

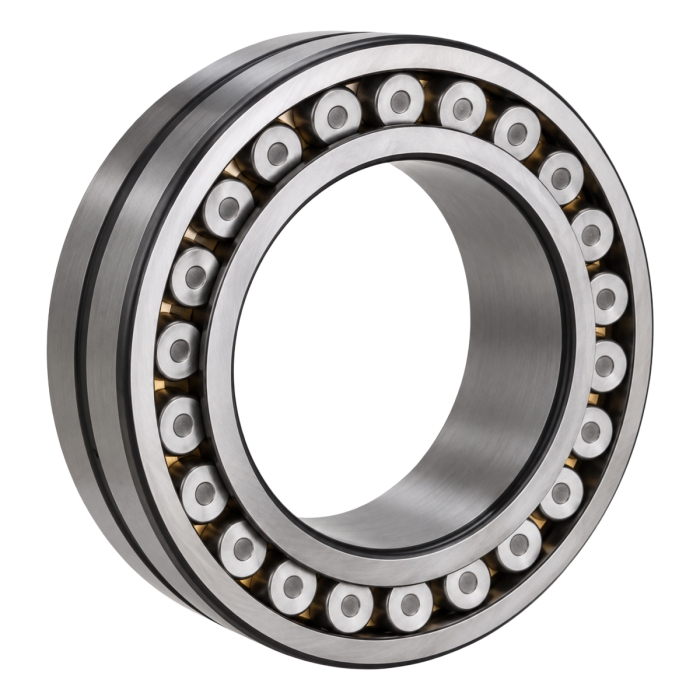

NTN 22213EMW33C3 ULTAGE® 222 Type EM Spherical Roller Bearing With Oil Groove, 65 mm Dia Bore, 120 mm OD, 2 Rows, 31 mm W, 226000 N Load
- Manufacturer: NTN
- Brand Name: NTN
- Part Number: NTN22213EMW33C3
- MPN: 22213EMW33C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
NTN 22213EMW33C3 ULTAGE 222 Type EM Spherical Roller Bearing With Oil Groove features 65 mm bore, 120 mm OD, and 31 mm width, Tapered bore, double-row, and open design, and ULTAGE® 222 series. Key specifications include Through Hardened Steel bearing and Brass cage, 226000 N dynamic and 224000 N static load ratings, and 4400 rpm Grease/5500 rpm Oil; temperature -40 to 200 deg C. Its spherical roller geometry accommodates misalignment while providing high radial load capacity and useful axial-load capability.
NTN Spherical Roller Bearing, Type EM, Series: ULTAGE® 222, 65 mm Bore Dia, 120 mm Outside Dia, 2 Rows, 31 mm W, Open Closure, 226000 N, Through Hardened Steel Bearing, Brass Cage, 4400 rpm Grease/5500 rpm Oil Maximum, -40 to 200 deg C
| Bearing Material | : | Through Hardened Steel |
| Bore Diameter | : | 65 mm |
| Cage Material | : | Brass |
| Closure Type | : | Open |
| Load Capacity | : | 226000 N |
| Maximum Speed | : | 4400 rpm Grease/5500 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 120 mm |
| Series | : | ULTAGE® 222 |
| Temperature Rating | : | -40 to 200 deg C |
| Type | : | Type EM |
| Width | : | 31 mm |
- Product type: ULTAGE Spherical Roller Bearing
- Series: ULTAGE® 222
- Dimensions: 65 mm bore x 120 mm outside diameter x 31 mm width
- Design: Cylindrical bore; double row; open
- Construction: Through-hardened steel bearing; Machined-brass cage
- Load ratings: 226,000 N dynamic / 224,000 N static
- Operating limits: 4,400 rpm (grease) / 5,500 rpm (oil); -40 to 200 °C
- Radial internal clearance: C3
- Relubrication: Oil groove and lubrication holes in outer ring
