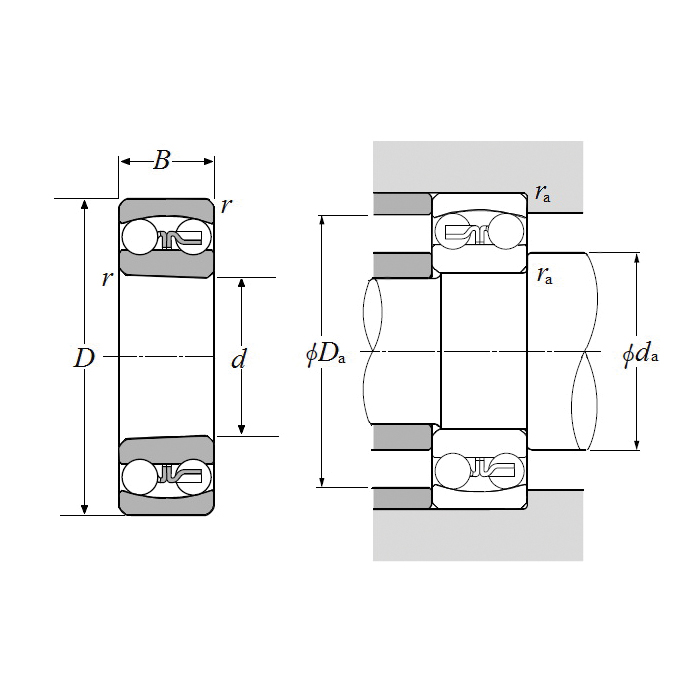

Double Row Self-aligning Bearings utilize an inner ring with two rows of balls in two deep raceways, and an outer ring with a single spherical raceway. In this way, the inner and outer rings can be misaligned relative to each other. The resulting effect is a comparatively large angle imposing moment loads upon the balls. The boundary dimensions of the 1200 and 1300 series are the same as the 6200 and 6300 single row deep groove bearings.

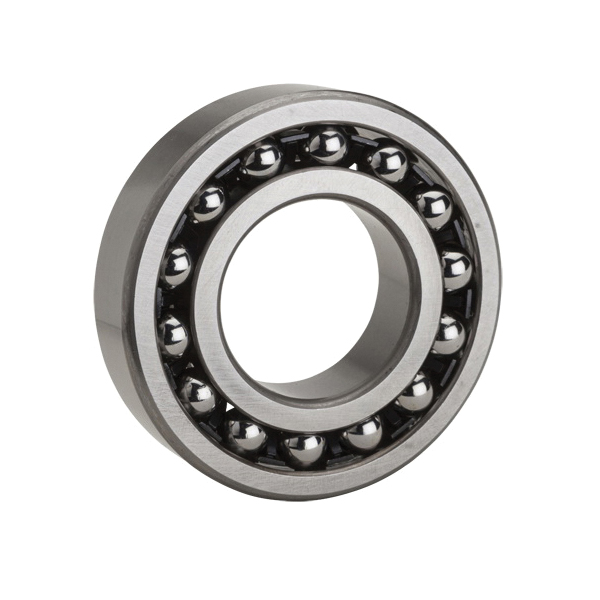

NTN Self-Aligning Ball Bearing, Tapered Bore, Series: 12 Series, 65 mm Bore Dia, 120 mm Outside Dia, 2 Rows, 23 mm W, Open Closure, 31000 N, High Carbon Chrome Steel Bearing, Pressed Steel Cage, 4800 rpm Grease/6000 rpm Oil Maximum, -40 to 120 deg C
| Bearing Material | : | High Carbon Chrome Steel |
| Bore Diameter | : | 65 mm |
| Cage Material | : | Pressed Steel |
| Closure Type | : | Open |
| Load Capacity | : | 31000 N |
| Maximum Speed | : | 4800 rpm Grease/6000 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 120 mm |
| Series | : | 12 Series |
| Temperature Rating | : | -40 to 120 deg C |
| Type | : | Tapered Bore |
| Width | : | 23 mm |
- Standard cage
- ISO class 0 precision rating
- 1:12 tapered bore
- 31000 N dynamic/12500 N static
