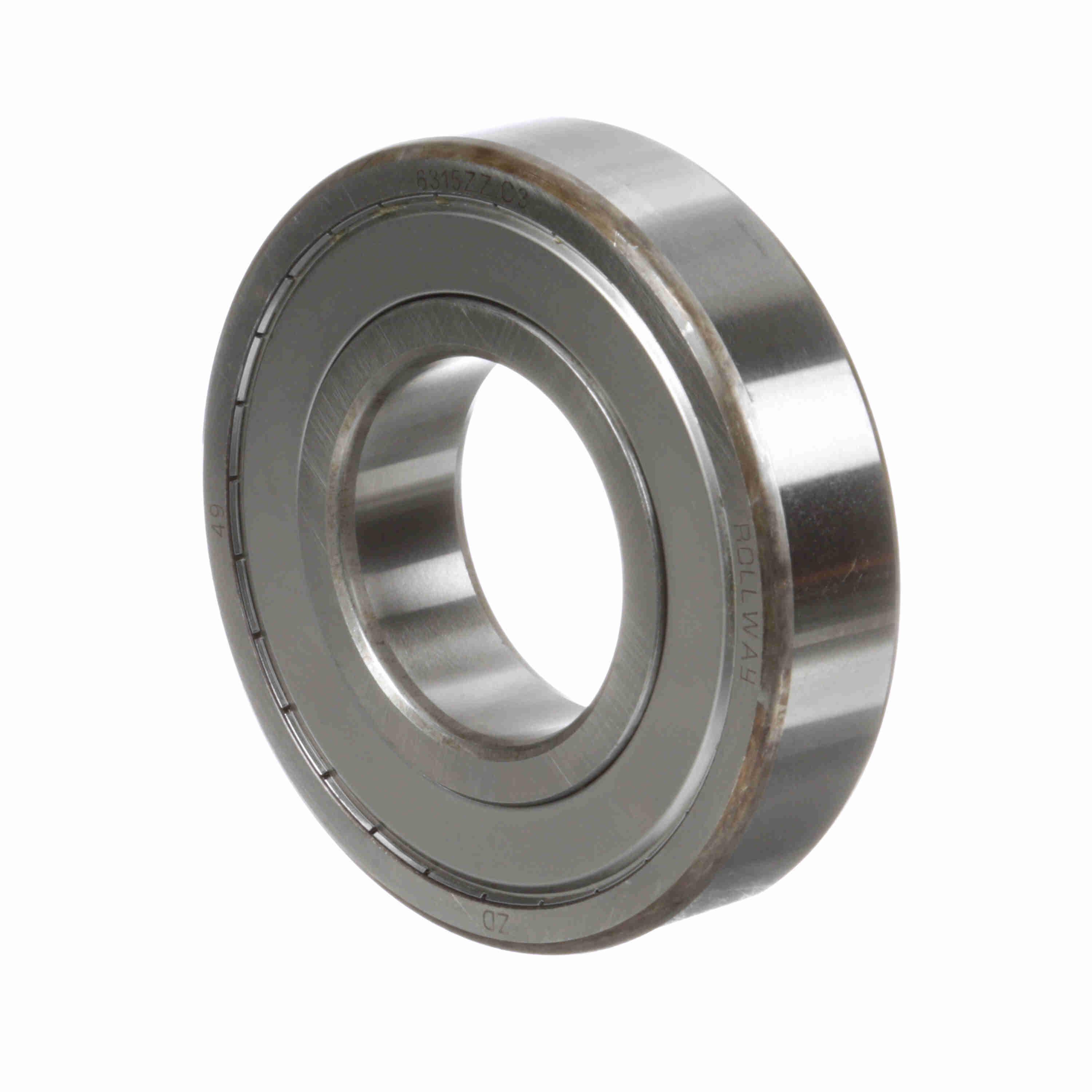

NSK 6315ZZC3 NSK6315ZZ
NSK 6315ZZC3 Medium Deep Groove Ball Bearing, 75 mm Dia Bore, 160 mm OD, 1 Row, 37 mm W, 119000 N Dynamic/77000 N Static Load
- Manufacturer: NSK AMERICAS
- Brand Name: NSK
- Part Number: NSK6315ZZ
- MPN: 6315ZZC3
- UPC: 029176017551
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Deep Groove Ball Bearings (DGBB) are the most common form of rolling bearings and are used in a variety of applications, particularly those where high speeds and low power loss are required. NSK DGBB can handle not only radial forces, but also moderate axial loads in both directions. They are easy to install and can be deployed in a variety of configurations.
NSK Deep Groove Ball Bearing, Medium, Series: HPS™ 6300, 75 mm Bore Dia, 160 mm Outside Dia, 1 Row, 37 mm Width, Double Shield Closure, 119000 N Dynamic/77000 N Static, Steel Cage, 5000 rpm Grease/6000 rpm Oil Maximum, -10 to 110 deg C
| Bore Diameter | : | 75 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Load Capacity | : | 119000 N Dynamic/77000 N Static |
| Maximum Speed | : | 5000 rpm Grease/6000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 160 mm |
| Series | : | HPS™ 6300 |
| Temperature Rating | : | -10 to 110 deg C |
| Type | : | Medium |
| Width | : | 37 mm |
- High quality steel - ultra clean steel made to extend bearing life by up to 80%
- Advanced grease technology - NSK lubricants made to extend grease life and improve bearing performance
- Super finished raceways - specially honed to minimize noise and improve the grease distribution
- Patented seals - provide a barrier to contamination in tough environments
