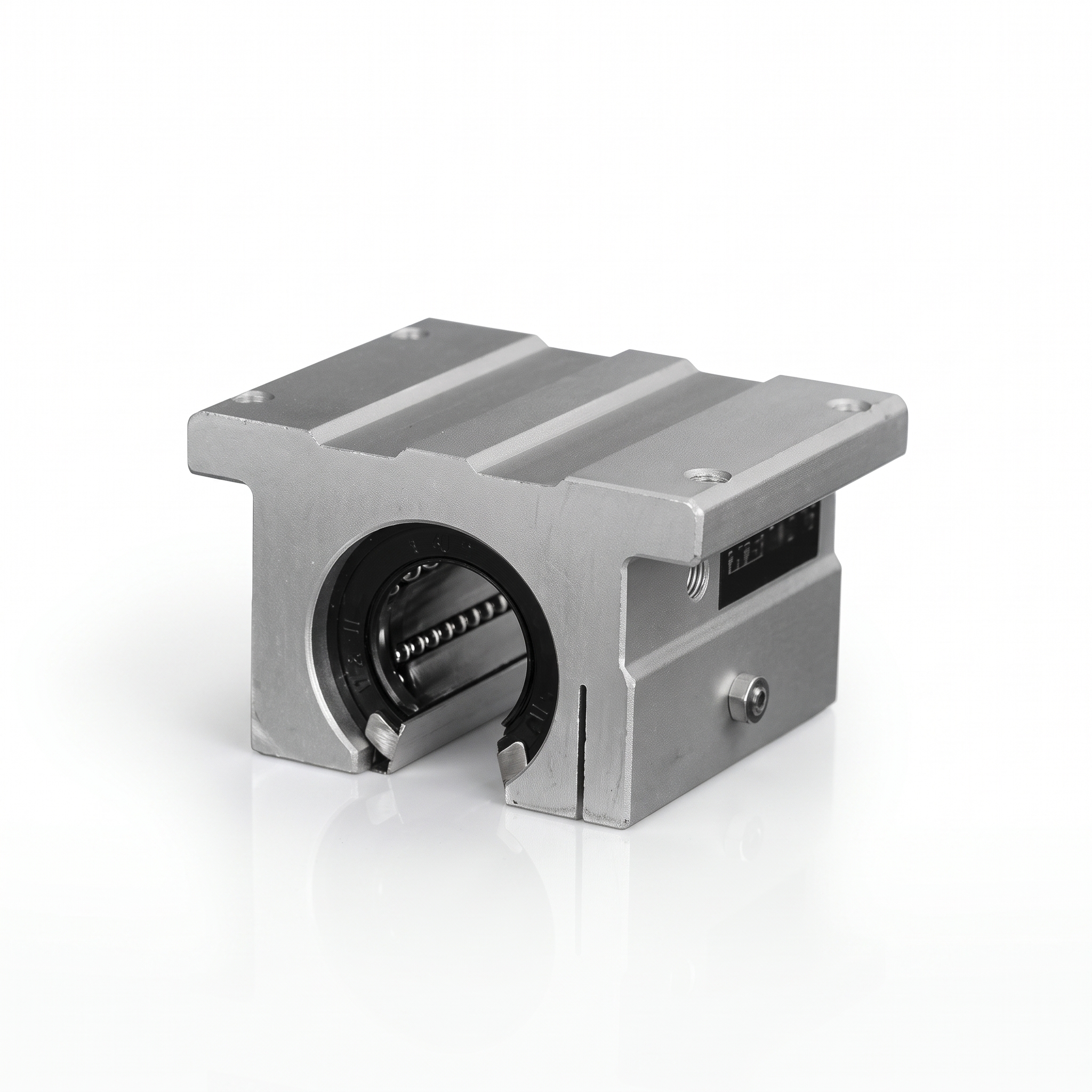

NIPPON BEARING TWD 16UU NBCTWD16UU

NIPPON BEARING Topball® TWD 16UU Open Block Standard Linear Motion Bearing Mounted Unit, 1 in Dia Shaft, 1.187 in Center Line to Base, 3-1/4 in L x 2-5/8 in W x 1.975 in H

  • Manufacturer: NIPPON BEARING CO., LTD
  • Brand Name: NIPPON BEARING
  • Part Number: NBCTWD16UU
  • MPN: TWD 16UU
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The NB Topball® is a linear motion mechanism utilizing the rotational motion of ball elements. NB's self aligning Topball® can be designed into many different applications such as factory automated equipment, machine tools, industrial machines, electrical equipment, optical and measuring instruments.

NIPPON BEARING Topball® Linear Motion Bearing Mounted Unit, Open Block Standard, Series: TWD, 1 in Shaft Diameter, 1.187 in Center Line to Base, 1.975 in Height, 3-1/4 in Length, 2-5/8 in Width, 850 lb Dynamic/1060 lb Static Load, 3 m/s Maximum, -20 to 80 deg C

Center Line to Base      :      1.187 in
Height      :      1.975 in
Length      :      3-1/4 in
Load Capacity      :      850 lb Dynamic/1060 lb Static
Maximum Speed      :      3 m/s
Series      :      TWD
Shaft Diameter      :      1 in
Temperature Rating      :      -20 to 80 deg C
Type      :      Open Block Standard
Width      :      2-5/8 in
  • Higher load capacity and longer travel life - NB's uniquely designed load plate provides circular arch contact to the ball element resulting in a greater dispersion of the load, enabling Topball® to provide up to 3X the load capacity therefore 27X the travel life of conventional slide bushings
  • Self aligning capability - Load plates are thinner at the ends to provide a pivot point at the center of the plate
  • Floating seal - NB's unique floating seal design allows for self alignment while maintaining equal and constant contact to the shaft
  • High speed - Topball® meets high speed requirements
  • Topball® unit - This is a Topball® with a housing, the housing has the most appropriate bore tolerance that optimizes Topball®'s performance
  • Tolerance interchangeable with Asian metric slide bush type - Shaft diameter tolerance for TMF and TMA types is the same as Asian metric slide bush
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NB_TW10_Catalog.pdf
