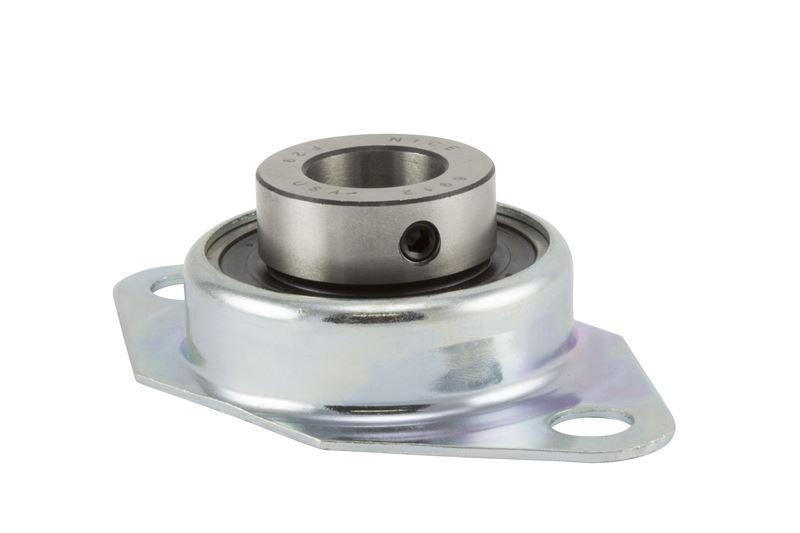

Nice® N6912TNTG18 RBCN6912TNTG18

The 6900® Series bearing consists of a double sealed, semi-ground bearing with an extended inner ring. It is provided with two set screws and a flanged housing designed for flush mounting. Bearings are supplied assembled in the housing. Flanged and non-flanged units are available from stock. The pressed steel flanged housing provides a secure yet inexpensive means for holding the bearing in place. Although these units are not of the self-aligning type, they will accommodate a limited amount of angular misalignment.

Nice® Flange Mount Radial Ball Bearing, Semi-Ground Medium Duty Round Bore, Series: 6900, 3/4 in Bore, 3-1/4 in Bolt Center-to-Center Length, 4-1/8 in Overall Length/Diameter, 1.063 in Overall Depth, 2-1/4 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Rubber Seal, 1870 lb Dynamic/1350 lb Static Load, 3000 rpm Maximum, 300 deg F, Chrome Steel

• Bearing manufactured with flanged housing to aid in installation
• Pregreased with metered Shell Alvania #2 grease
• Designed for moderate loads and speeds
• Extended inner ring with two set screws for securing a shaft
• Although not the self-aligning type, this bearing will accommodate a limited amount of angular misalignment
• Through hardened bearing steel
• Nylon retainer and cage
• Double sealed
• Non-expansion
• Non-relubricable

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nice_40014VBF53_Catalog.pdf
