Nice® N6910TNTG18 RBCN6910TNTG18
  1. pin-int

Nice® N6910TNTG18 RBCN6910TNTG18

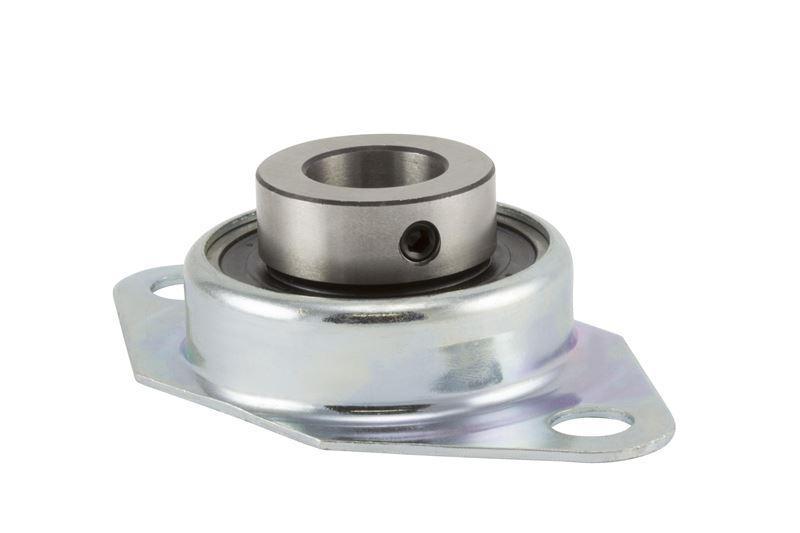

Nice® N6910TNTG18 6900 Semi-Ground Medium Duty Round Bore Flange Mount Radial Ball Bearing, 5/8 in Dia Bore, 2-7/8 in L Bolt Center-to-Center, 3-3/4 in OAL/Dia

  • Manufacturer: RBC Bearings Incorporated
  • Brand Name: Nice®
  • Part Number: RBCN6910TNTG18
  • MPN: N6910TNTG18
  • UPC: 637400291082
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

The 6900® Series bearing consists of a double sealed, semi-ground bearing with an extended inner ring. It is provided with two set screws and a flanged housing designed for flush mounting. Bearings are supplied assembled in the housing. Flanged and non-flanged units are available from stock. The pressed steel flanged housing provides a secure yet inexpensive means for holding the bearing in place. Although these units are not of the self-aligning type, they will accommodate a limited amount of angular misalignment.

Nice® Flange Mount Radial Ball Bearing, Semi-Ground Medium Duty Round Bore, Series: 6900, 5/8 in Bore, 2-7/8 in Bolt Center-to-Center Length, 3-3/4 in Overall Length/Diameter, 1 in Overall Depth, 1-7/8 in Overall Height, Set Screw Locking Device, 52100 Steel Bearing, Rubber Seal, 1610 lb Dynamic/1010 lb Static Load, 3000 rpm Maximum, 300 deg F, Chrome Steel

Bearing Material      :      52100 Steel
Bolt Center-to-Center Length      :      2-7/8 in
Bore Diameter      :      5/8 in
Finish      :      Chrome Steel
Load Capacity      :      1610 lb Dynamic/1010 lb Static
Locking Device      :      Set Screw
Maximum Speed      :      3000 rpm
Overall Depth      :      1 in
Overall Height      :      1-7/8 in
Overall Length/Diameter      :      3-3/4 in
Seal Material      :      Rubber
Series      :      6900
Temperature Rating      :      300 deg F
Type      :      Semi-Ground Medium Duty Round Bore
  • Bearing manufactured with flanged housing to aid in installation
  • Pregreased with metered Shell Alvania #2 grease
  • Designed for moderate loads and speeds
  • Extended inner ring with two set screws for securing a shaft
  • Although not the self-aligning type, this bearing will accommodate a limited amount of angular misalignment
  • Through hardened bearing steel
  • Nylon retainer and cage
  • Double sealed
  • Non-expansion
  • Non-relubricable
