Nice® 7616DLGTNTG18 RBC7616DLGTN

The 7600® Series bearings are single row retainer type radial bearings similar in construction to the 1600® Series bearings. They incorporate a highly efficient single lip contact seal with metal guard. The inner and outer rings are turned from chrome steel and after careful heat treatment the through hardened rings are accurately ground to close tolerances. The inner ring is extended and contains set screws whereas the 7500® Series bearing does not. The 7600® Series bearings are recommended for applications requiring the accuracy of rotation and quiet performance of close limit precision grade bearings, and where a superior seal is required to retain lubricant and keep the bearing free from dust and dirt.

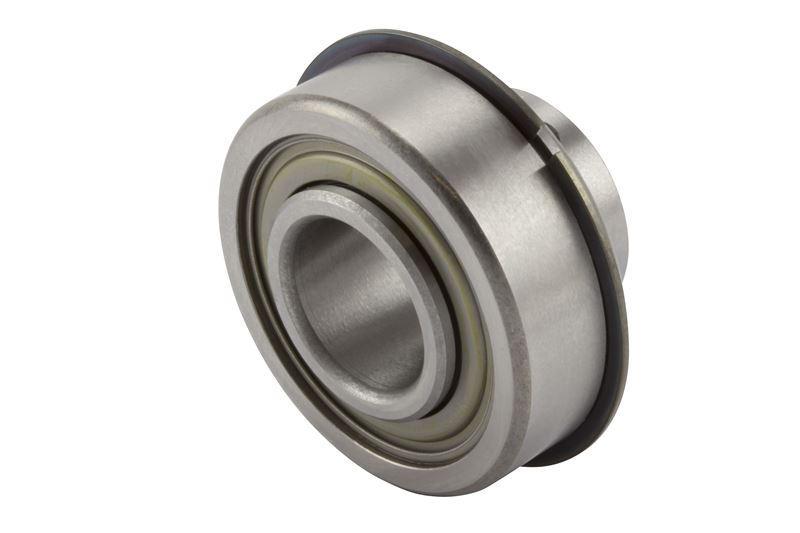

Nice® Precision Deep Groove Ball Bearing, Heavy Duty Non-Fill Slot, Series: 7600®, 1 in Bore, 2 in OD, 1 Rows, 1.179 in Width, Double Seal Closure, 1350 lb Load, 52100 Steel Bearing, Nylon Cage, 5000 rpm Maximum, 300 deg F, Chrome Steel

• Precision ground on all contact surfaces, similar to the 1600® series bearings
• Highly efficient single lip contact seal
• Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
• Pregreased with metered Shell Alvania #2 grease
• Highly effective single lip contact seal with trash guard
• Recommended for applications where accurate, quiet performance and superior sealing are required
• 2970 lb dynamic/1350 lb static

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Nice_40014VBF53_Catalog.pdf
