Nice® 512VBF53 RBC512

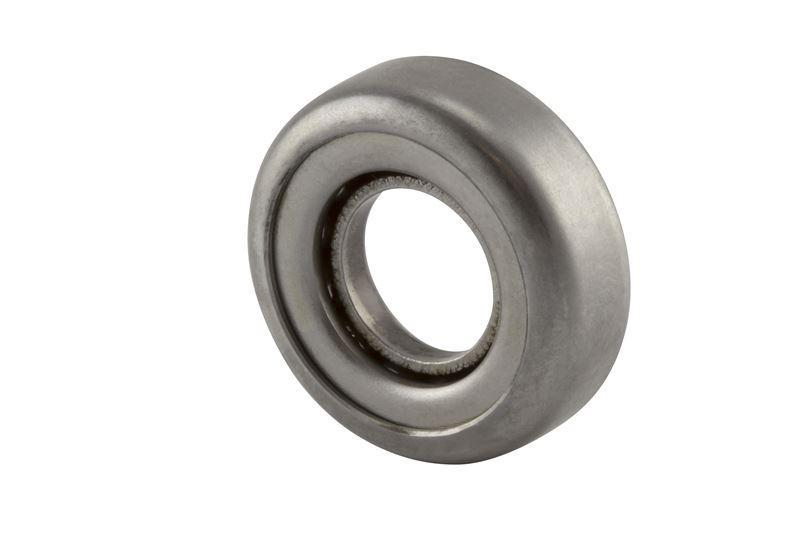

Nice® 512VBF53 500® Round Bore Unground Angular Contact Ball Bearing, 3/4 in Dia Bore, 1.594 in OD, 1 Row, 1/2 in W, 366 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: Nice®
- Part Number: RBC512
- MPN: 512VBF53
- UPC: 637400409852
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The 500® Series of unground combination radial and thrust bearings are designed for applications where a pure radial bearing or a pure thrust bearing would be unsuitable. The 500® Series is an angular contact bearing designed for applications where thrust and/or radial load carrying capability is required.
Nice® Unground Angular Contact Ball Bearing, Round Bore, Series: 500®, 3/4 in Bore Dia, 1.594 in Outside Dia, 1 Row, 1/2 in W, Open Closure, 366 lb, Carbon Steel Bearing, 1000 rpm Maximum, 300 deg F, Uncoated
| Bearing Material | : | Carbon Steel |
| Bore Diameter | : | 3/4 in |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 366 lb |
| Maximum Speed | : | 1000 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 1.594 in |
| Series | : | 500® |
| Temperature Rating | : | 300 deg F |
| Type | : | Round Bore |
| Width | : | 1/2 in |
- Designed for moderate loads and speeds
- Hardened inner and outer rings
- Full complement of balls for maximum capacity
- Pregreased with metered Shell Alvania #2 grease
- Fully unitized assembly
- C0 clearance
- No filling slot
- 1010 soft carbon steel band
- Case hardened carbon steel rings
- Grade 200 carbon steel balls
- Full compliant
- Standard slush
- Flat outside ring
- Without snap ring
