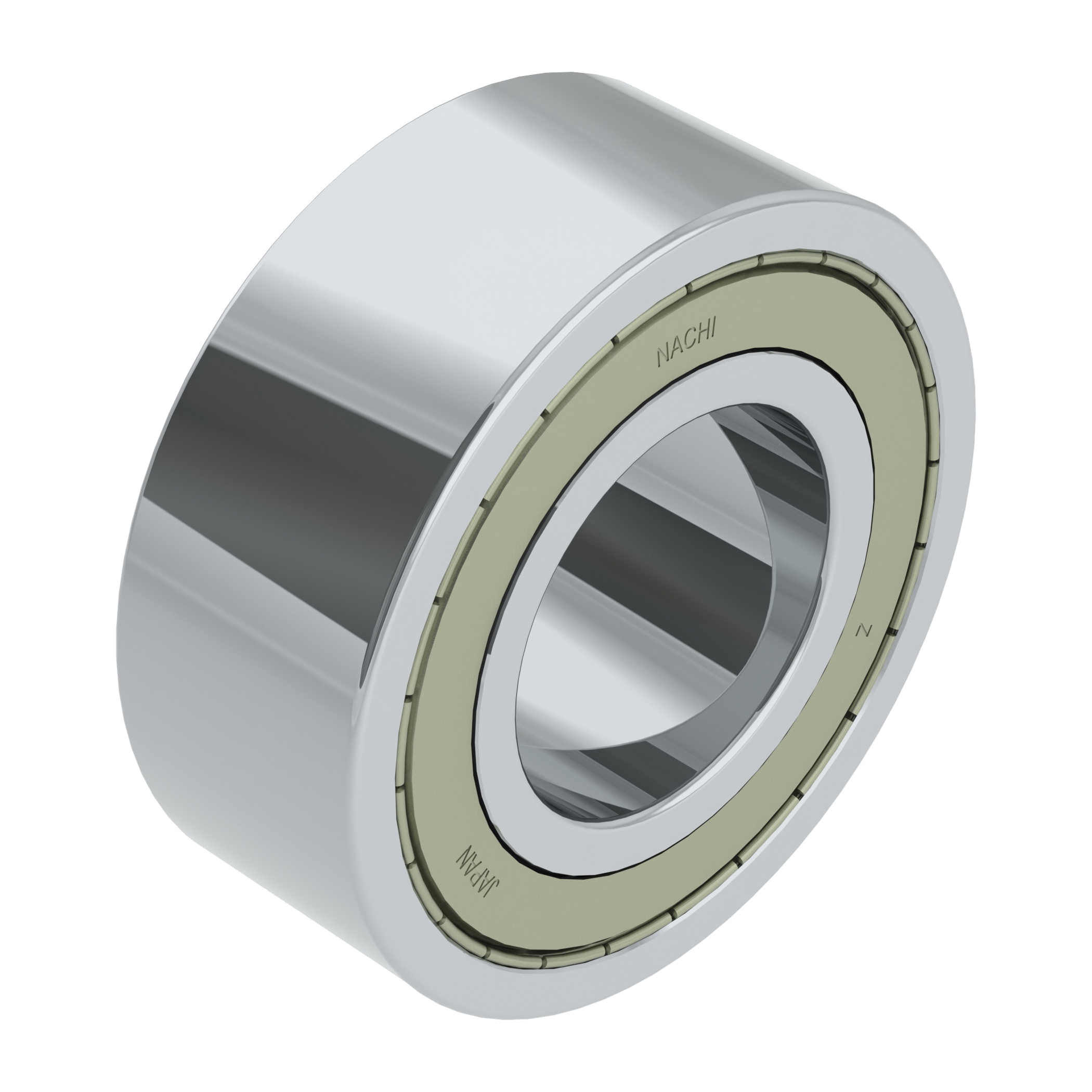

NACHI 5203ZZ NAC5203ZZ

Double-Row Angular Contact Ball Bearings have a thinner width than 2 stacked Deep-Groove bearings & can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle (α). The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

NACHI Angular Contact Ball Bearing, Series: 5200, 17 mm Bore, 40 mm OD, 2 Rows, 17.5 mm Width, 20 deg Contact Angle, Double Seal Closure, 15000 N Dynamic/9250 N Static Load, Steel Bearing, Pressed Steel Cage, 12000 rpm Grease/17000 rpm Oil Maximum, 250 deg F

• The construction of this ball bearing is similar to mounting two single row angular ball bearings back to back (DB)
• Capacities of double row ball bearing is less than single row since few balls can be inserted per row
• This bearing type can sustain radial, moment and bi-directional axial loads

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NACHI_5200_Catalog.pdf
