NACHI 30TAB06UP4 NAC30TAB06UP4

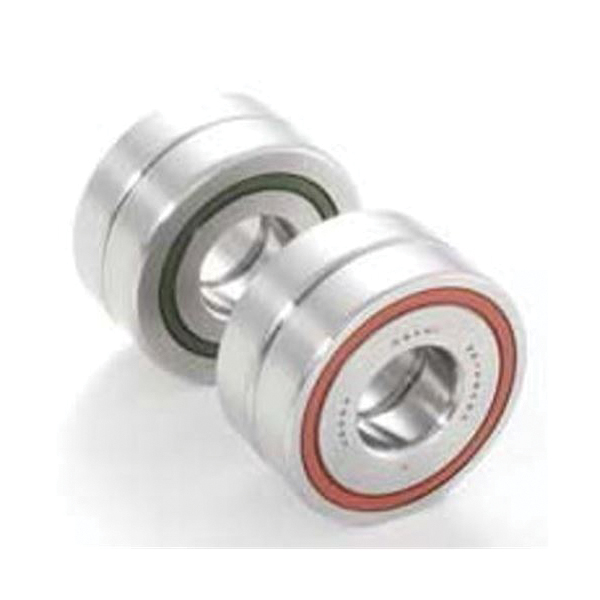

NACHI 30TAB06UP4 TAB Screw Support Super Precision Ball Bearing, 30 mm Dia Bore, 62 mm OD, 1 Row, 15 mm W, 29.9 kN Dynamic/46.4 kN Axial Load
- Manufacturer: NACHI AMERICA
- Brand Name: NACHI
- Part Number: NAC30TAB06UP4
- MPN: 30TAB06UP4
- UPC: 4991893565065
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:

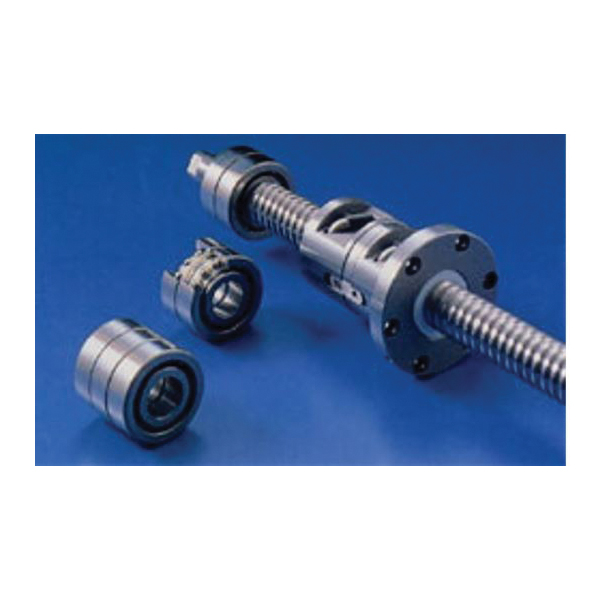

This bearing type is used for supporting the ball screws that are used as actuators of high precision and high speed machines, precision measurement equipment, robots, etc. This is a precision and high ability bearing.
NACHI Super Precision Ball Bearing, Screw Support, Series: TAB, 30 mm Bore, 62 mm OD, 1 Row, 15 mm Width, Open Closure, 29.9 kN Dynamic/46.4 kN Axial Load, Steel Bearing, Polyamide Cage, 4650 rpm Grease/6000 rpm Oil Maximum, 250 deg F
| Bearing Material | : | Steel |
| Bore Diameter | : | 30 mm |
| Cage Material | : | Polyamide |
| Closure Type | : | Open |
| Load Capacity | : | 29.9 kN Dynamic/46.4 kN Axial |
| Maximum Speed | : | 4650 rpm Grease/6000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 62 mm |
| Series | : | TAB |
| Temperature Rating | : | 250 deg F |
| Type | : | Screw Support |
| Width | : | 15 mm |
- Seal is integrated into a ball screw support bearing with great axial rigidity
- Maintenance-free because high performance grease is pre-filled (prevents entry of foreign substance from outside)
- Preset preload for easy installation onto the machine
- With plastic cage, more balls are incorporated than conventional angular contact ball bearing to increase rigidity
- Energy saving thanks to excellent low starting torque and rotational torque
- Contact type seals with excellent sealing performance and non-contact type seals with reduced torque loss and temperature rise
