NACHI 29413EX NAC29413EX
  1. pin-int

NACHI 29413EX NAC29413EX

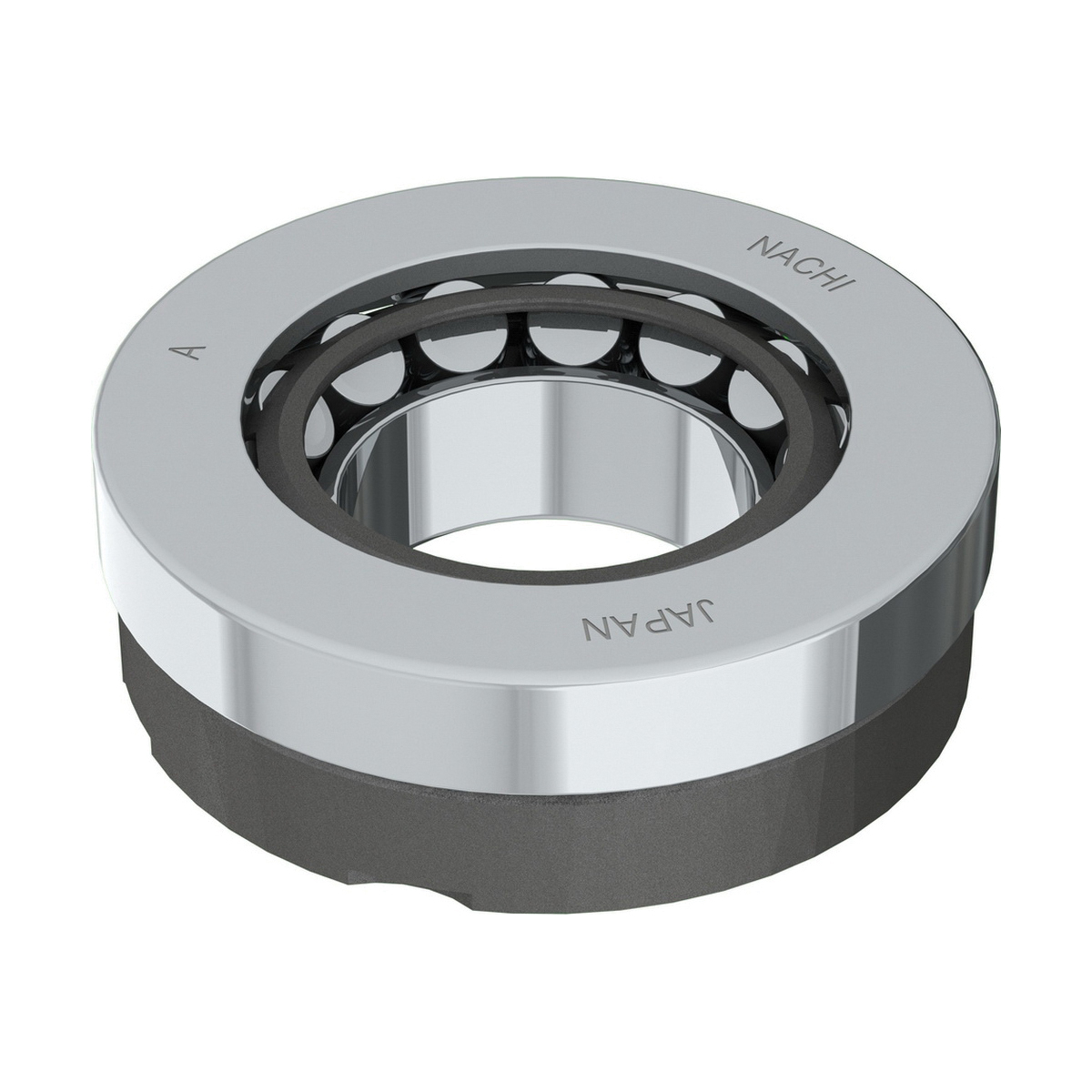

NACHI 29413EX 29400 Spherical Roller Thrust Bearing, 65 mm Dia Bore, 140 mm OD, 45 mm W, 410000 N Dynamic/1110000 N Static Load

  • Manufacturer: NACHI AMERICA
  • Brand Name: NACHI
  • Part Number: NAC29413EX
  • MPN: 29413EX
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

NACHI Spherical Roller Thrust Bearing, Series: 29400, 65 mm Bore, 140 mm OD, 45 mm Width, 410000 N Dynamic/1110000 N Static Load, Steel Bearing, 1700 rpm Grease/2700 rpm Oil Maximum, 150 deg C

Bearing Material      :      Steel
Bore Diameter      :      65 mm
Load Capacity      :      410000 N Dynamic/1110000 N Static
Maximum Speed      :      1700 rpm Grease/2700 rpm Oil
Outside Diameter      :      140 mm
Series      :      29400
Temperature Rating      :      150 deg C
Width      :      45 mm
  • The raceway of housing washer of this bearing type is spherical with the center of the radius located on the bearing axis
  • The design provides self-alignment capability to the bearing
  • The contact angle is approximately 45 deg enabling the bearing to support axial load and a small to moderate amount of radial load
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NACHI_29318EX_Catalog.pdf
