MRC® 7309 MRC7309

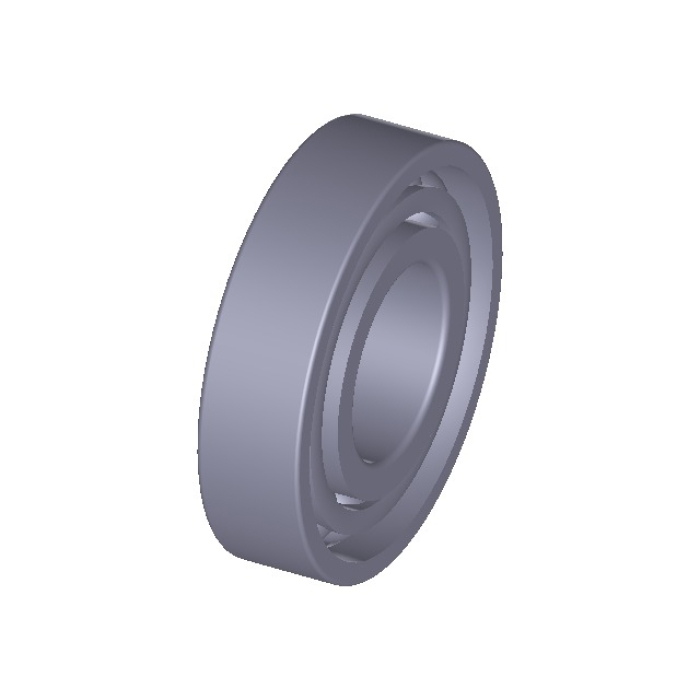

MRC® 7309 73 Series Straight Angular Contact Bearing, 45 mm Dia Bore, 100 mm OD, 1 Rows, 25 mm W, 29 deg, 11800 lbf Dynamic/8430 lbf Static Load
- Manufacturer: SKF
- Brand Name: MRC®
- Part Number: MRC7309
- MPN: 7309
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MRC®, 7309, Angular Contact Bearing, Straight, Series: 73 Series, 45 mm Bore, 100 mm OD, 1 Rows, 25 mm Width, 29 deg Contact Angle, Open Closure, 11800 lbf Dynamic/8430 lbf Static Load, Steel Bearing, Bronze Cage, 8300 rpm Maximum, -40 to 100 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 45 mm |
| Cage Material | : | Bronze |
| Closure Type | : | Open |
| Contact Angle | : | 29 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 11800 lbf Dynamic/8430 lbf Static |
| Maximum Speed | : | 8300 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 100 mm |
| Series | : | 73 Series |
| Temperature Rating | : | -40 to 100 deg C |
| Type | : | Straight |
| Width | : | 25 mm |
