MRC® 5315CG MRC5315CG

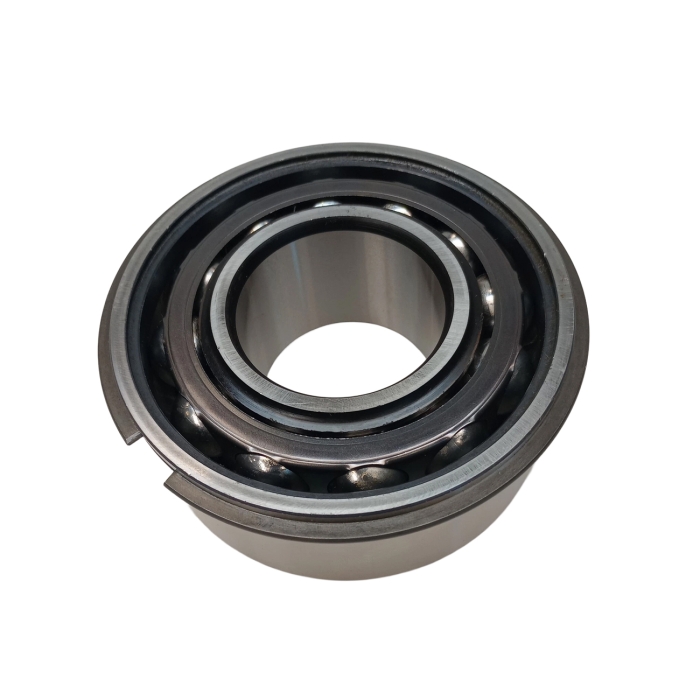

MRC® 5315CG 5300-C Straight Angular Contact Bearing, 75 mm Dia Bore, 160 mm OD, 2 Rows, 2.68 in W, 30 deg, 37800 lbf Dynamic/31500 lbf Static Load
- Manufacturer: SKF
- Brand Name: MRC®
- Part Number: MRC5315CG
- MPN: 5315CG
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MRC®, 5315CG, Angular Contact Bearing, Straight, Series: 5300-C, 75 mm Bore, 160 mm OD, 2 Rows, 2.68 in Width, 30 deg Contact Angle, Open Closure, 37800 lbf Dynamic/31500 lbf Static Load, Chrome Steel Bearing, 4600 rpm Maximum, 450 deg F, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 75 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Contact Angle | : | 30 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 37800 lbf Dynamic/31500 lbf Static |
| Maximum Speed | : | 4600 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 160 mm |
| Series | : | 5300-C |
| Temperature Rating | : | 450 deg F |
| Type | : | Straight |
| Width | : | 2.68 in |
