MRC® 5200SB MRC5200SB

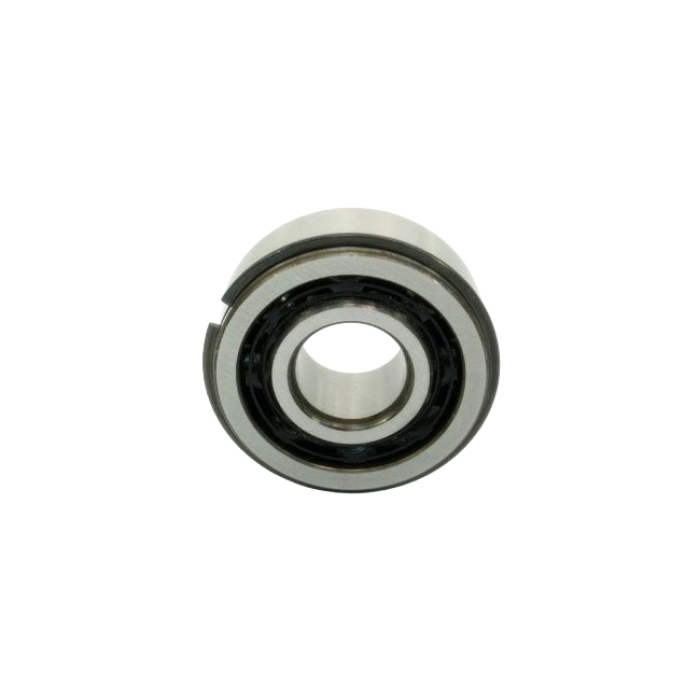

MRC® 5200SB 5200-SB Straight Angular Contact Bearing, 10 mm Dia Bore, 30 mm OD, 2 Rows, 0.56 in W, 30 deg, 1710 lbf Dynamic/967 lbf Static Load
- Manufacturer: SKF
- Brand Name: MRC®
- Part Number: MRC5200SB
- MPN: 5200SB
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
MRC®, 5200SB, Angular Contact Bearing, Straight, Series: 5200-SB, 10 mm Bore, 30 mm OD, 2 Rows, 0.56 in Width, 30 deg Contact Angle, Open Closure, 1710 lbf Dynamic/967 lbf Static Load, Chrome Steel Bearing, 22000 | rpm Maximum, 450 deg F, Uncoated
| Bearing Material | : | Chrome Steel |
| Bore Diameter | : | 10 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Contact Angle | : | 30 deg |
| Finish | : | Uncoated |
| Load Capacity | : | 1710 lbf Dynamic/967 lbf Static |
| Maximum Speed | : | 22000 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 30 mm |
| Series | : | 5200-SB |
| Temperature Rating | : | 450 deg F |
| Type | : | Straight |
| Width | : | 0.56 in |
