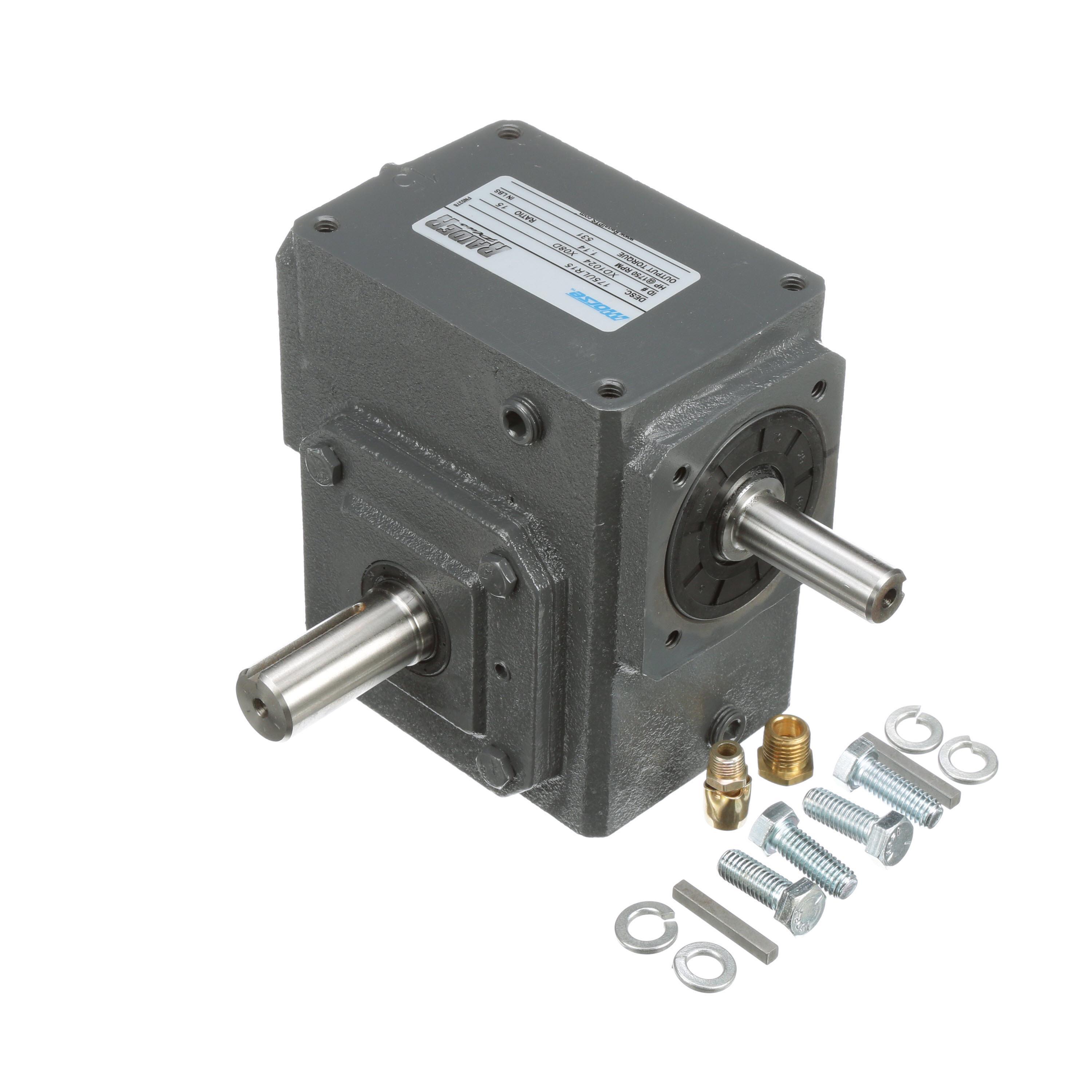

Morse® XC1025 MOR154ULR20

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 20:1 Gear Ratio, 1 hp, Universal Shaft-In Input, Left and Right Output, 0.625 in Dia x 1.76 in L Input, 3/4 in Dia x 2.11 in L Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 33.1 in-lb Input/87.5 in-lb Output, 1.54 in Centre Distance, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Universal Mount, Cast Iron, 7.49 in L x 8.62 in W x 5.38 in H

• Rugged cast iron housing provides maximum strength and dependability
• High lead angle worm is case hardened, ground and polished
• Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
• Forged bronze worm gears provide optimum balance of strength and wear
• Heavy duty tapered roller bearings on all output shafts
• Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
• 1 and 2 Grooves are available to meet any fractional horsepower requirement
• Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
