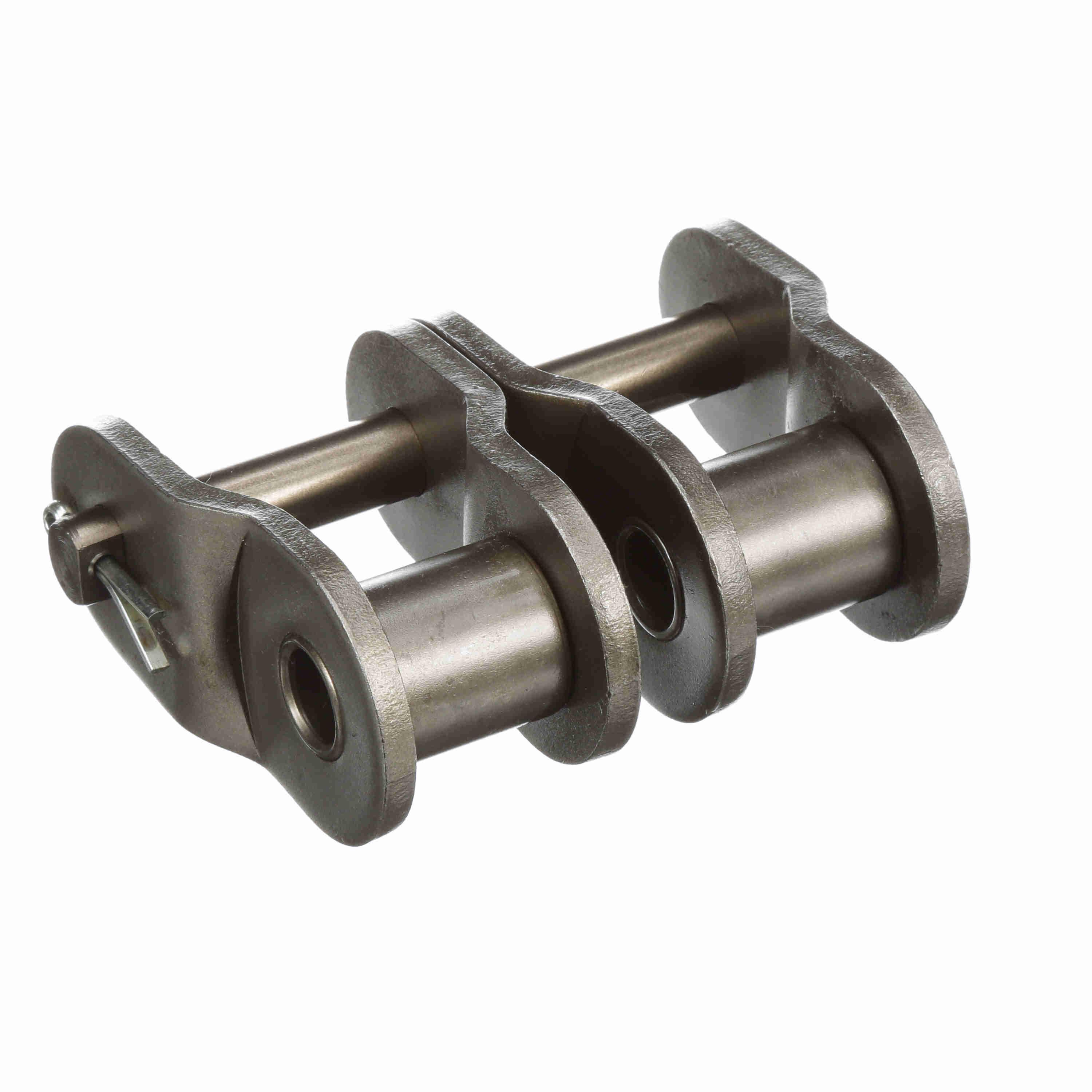

Morse® 322444 MOR160-2OS
Morse® 322444 Standard Duty Offset Link With Cotter Pin, 160 Chain, 2 in Pitch, 4.827 in OAW, 0.562 in Dia Pin, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MOR160-2OS
- Alt Part Number: 160-2 O/L
- MPN: 322444
- UPC: 662288456278
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.
Morse® Offset Link, Standard Duty, 160 Chain, 2 in Pitch, 4.827 in Overall Width, 0.562 in Pin Diameter, 1.866 in Link Plate Height, 1/4 in Link Plate Thickness, Steel
| Chain Size | : | 160 |
| Link Plate Height | : | 1.866 in |
| Link Plate Thickness | : | 1/4 in |
| Material | : | Steel |
| Overall Width | : | 4.827 in |
| Pin Diameter | : | 0.562 in |
| Pitch | : | 2 in |
| Type | : | Standard Duty |
- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards
- Rigid manufacturing processes result in a fully-featured chain
