Morse® 322441 MOR100-2OS

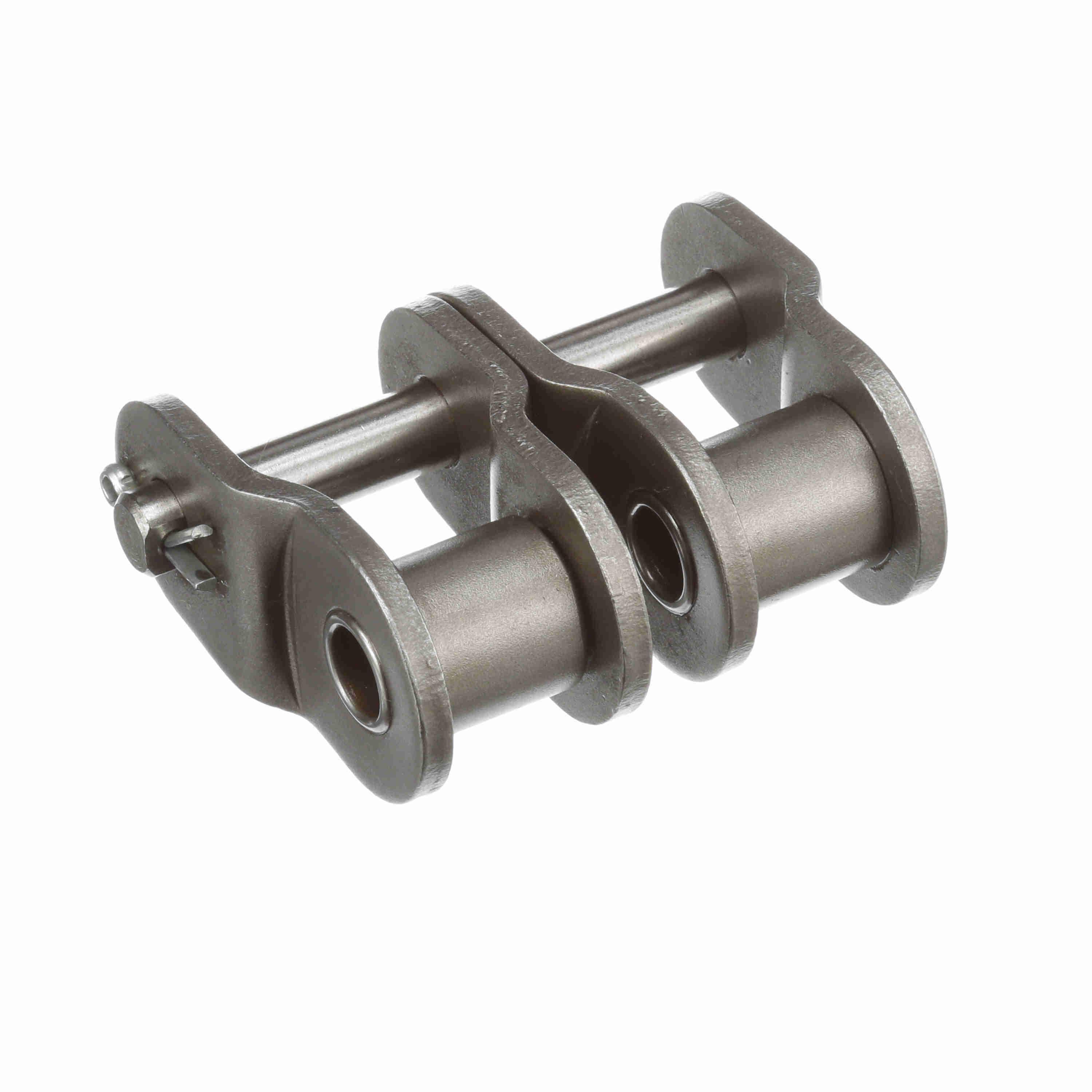

Morse® 322441 Standard Duty Offset Link With Cotter Pin, 100 Chain, 1-1/4 in Pitch, 2.963 in OAW, 3/8 in Dia Pin, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MOR100-2OS
- Alt Part Number: 100-2 O/L
- MPN: 322441
- UPC: 662288456247
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.
Morse® Offset Link, Standard Duty, 100 Chain, 1-1/4 in Pitch, 2.963 in Overall Width, 3/8 in Pin Diameter, 1.166 in Link Plate Height, 0.156 in Link Plate Thickness, Steel
| Chain Size | : | 100 |
| Link Plate Height | : | 1.166 in |
| Link Plate Thickness | : | 0.156 in |
| Material | : | Steel |
| Overall Width | : | 2.963 in |
| Pin Diameter | : | 3/8 in |
| Pitch | : | 1-1/4 in |
| Type | : | Standard Duty |
- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards
- Rigid manufacturing processes result in a fully-featured chain
