Morse® 127814 MOR200OS

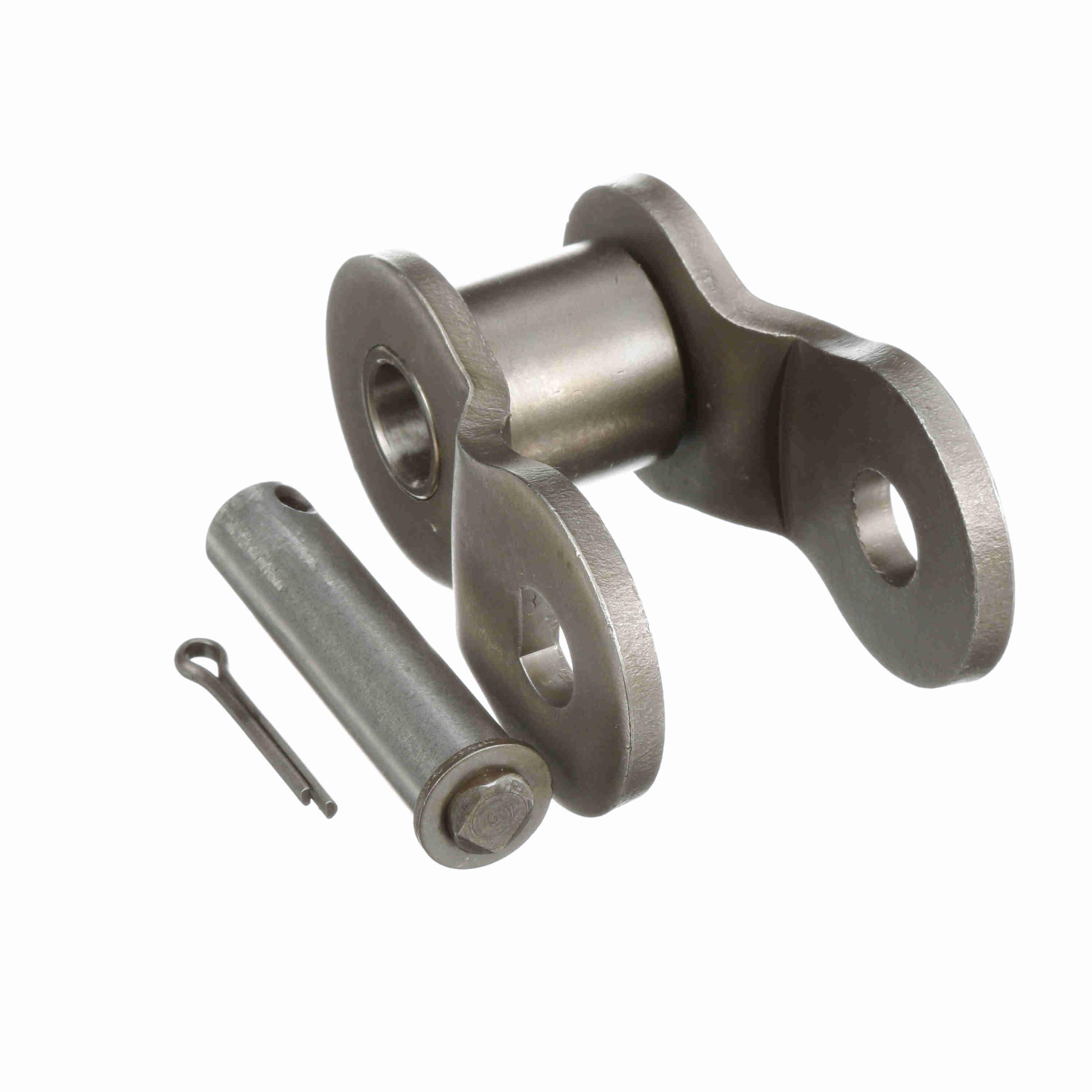

Morse® 127814 Standard Duty Offset Link With Cotter Pin, 200 Chain, 2-1/2 in Pitch, 3.12 in OAW, 0.781 in Dia Pin, Steel
- Manufacturer: Regal Rexnord
- Brand Name: Morse®
- Part Number: MOR200OS
- MPN: 127814
- UPC: 662288560425
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.
Morse® Offset Link, Standard Duty, 200 Chain, 2-1/2 in Pitch, 3.12 in Overall Width, 0.781 in Pin Diameter, 2-1/4 in Link Plate Height, 0.312 in Link Plate Thickness, Steel
| Chain Size | : | 200 |
| Link Plate Height | : | 2-1/4 in |
| Link Plate Thickness | : | 0.312 in |
| Material | : | Steel |
| Overall Width | : | 3.12 in |
| Pin Diameter | : | 0.781 in |
| Pitch | : | 2-1/2 in |
| Type | : | Standard Duty |
- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards
- Rigid manufacturing processes result in a fully-featured chain
